PAL / NTSC system,mirror or normal image can be set in the MENU for each camera separately
Deep sunshade to keep light off in the front of the monitor and it helps prevent glare at night.
Heavy duty U-shaped metal bracket keeps it stable on the roughest of roads.Supporting VESA bracket

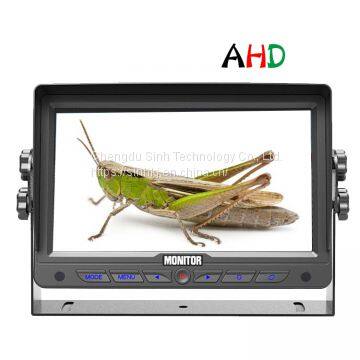

| Model Number:CS-S756AHD-Q |
| Panel: 7 " high digital new panel ,16 : 9 image |
| Video System: PAL / NTSC system Compatible |
| Resolution: 1024 x RGB x 600 |
| Brightness: 500 cd/m2 |
| Contrast: 400 : 1 |
| View angle: L/R:70,UP:50,down:70 degree |
| Display mode:Single /Split /Quad view selectable |
| Video input format:720P&960P HD 25Fps PAL |
| Power supply: DC 9~32 V |
| Power Consumption:15 Watt Max. |
| Osd control:Multi-lingual OSD,Reversing Delay,Power off screen,TV mode,Turnover,Firmwave Version,Backlight |
| Dimension( without shade) :17.8 x 12 x 2.35cm |
| Dimension( witht shade) :17.8 x 12 x 6.35cm |
| Operating Temperature(Deg.C):-20℃- +75℃ |
| Storage Temperature(Deg.C):-30℃- +80℃ |
