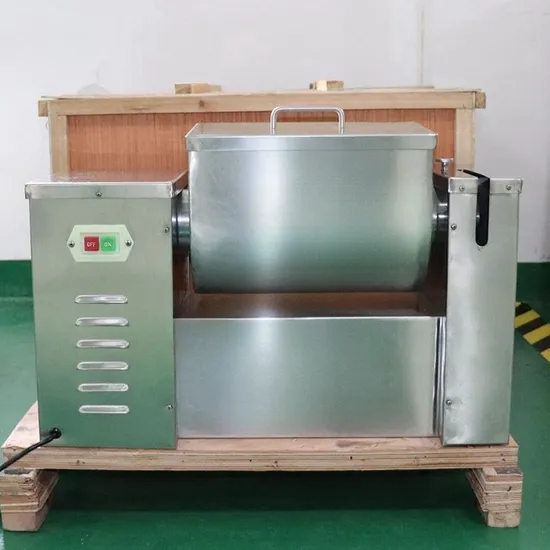

CH-10 Trough Type Chemical Powder Blender Powder Mixer Equipment

Product Description

CH-10 Trough Type Chemical Powder Blender Powder Mixer Equipment Product Name : Powder Mixer Machine
Model: CH-10
Barrel Capacity: 10L
Material Processed: Chemicals, Food, Medicine
Max. Loading Volume (L): 6L
Mixing Arm Speed (r.p.m): 24 r.p.m
Net Weight: 40 KG
Gross Weight: 60KG
Material: SUS304
Voltage: 220V OR 110V
Dimension(L*W*H): 68X28X48CM
Motor Power (kW): 0.25 kW
Dumping Motor Power: 0 KW ( Manual )
Warranty: 1 Year
After-sales Service Provided:Video technical support
Product profile:
CH-10 slot type mixer is used for mixing powder or paste material, so that the heterogeneous materials are mixed evenly, which is characterized in that the
horizontal groove type single slurry mixing, mixing slurry for the shaft, easy to clean. The contact parts are made of stainless steel. The homogeneous mixing of
heterogeneous materials is carried out by the rotation of the pulp leaves in the feed tank. The groove and the blade of the round mixer can be operated
reversely,and the efficiency is higher and the mixing is more uniform than that of the common trough mixer.

Technical Parameters:

Working volume (L)	10
Spindle speed (r/min)	24
Mixing cycle(min)	5-20
Main motor (kw)	0.25
Dumping motor (kw)	by hand
Overall size(mm)	600*280*450
Net weight (kg)	40

CH Mixer Machine Details
1. Compact structure, easy to operate and maintain.
2. Made of stainless steel, meets GMP standard.
3. Works very steady and quite.
Use the rotation of the thick liquid leaf in the material groove to mix the different materials evenly. Round material groove mixer and thick liquid leaf turn round backward at the same time. Our CH trough mixer has a higher efficiency in mixing the materials more evenly.
Powder mixer and granulation machine can be called as power press machine or medical press machine, they are used for mixing powder, making preparation for forming tablets or pills.
Application: This machine is suitable for mixing dry powder or granular materials such as pharmaceuticals, chemical industry and food.
Medicine: capsule granules, Chinese herbal condiments, powdery or granular Chinese herbal medicine, Western medicine and other mixtures.
Chemical products: iron powder, copper powder, magnesium powder and other chemical powder.
Food: such as condiments, additives, vitamins, and various sugar products.
Packaging:
Technical Parameter of other models CH Type powder mixer Machines :

Model	CH 10	CH 20	CH 50	CH 100
Trough capacity (L)	10	20	50	100
Mixing speed(r/min)	24	24	24	24
Mixing cycle(min)	5-20	5-20	5-20	5-20
Motor power(KW)	0.25	0.75	2.2	2.2
Dumping motor power(KW)	manual	manual	0.55	0.55
Weight (Kg)	60	72	90	150
Overall size (mm)	675X275X480	750X320X585	1100 x 440 x 900	1300 x 500 x 900

Model	CH 200	CH 400	CH 500	CH 1000
Trough capacity (L)	200	400	500	1000
Mixing speed(r/min)	24	24	24	24
Mixing cycle(min)	5-20	5-20	5-20	5-20
Motor power(KW)	2.2	2.2	2.2	3
Dumping motor power(KW)	0.75	0.75	0.75	0.75
Weight (Kg)	450	680	750	950
Overall size (mm)	1400 x 600 x 1200	2300×1000×1500	2500 x 1200 x 1700	2980 x 1500 x 1900

FAQ ( Frequently Asked Questions )Q: What's your MOQ ?
A: It is ok if you need 1 piece of this small mixer machine for a test .
Q: How can I pay ?
A: We have western union, bank transfer and Online payment way with trade assurance, it is similar to ****** .
Q: Do you have 220V motor and 110V motor for Choice ?
A: We have 110V and 220V motor for choice, and meanwhile we have different plug for different countries, our clients can use it directly after receiving it . Q: What's the shipping time
A: Different countries have different shipping time, you can tell me which city you are in, and we would tell you the accurate shipping time .
Q: What's the shipping service
A: We can help complete Customs-clearance, and also cover tariff since many friends don't want to contact Customs to do Customs-clearance in person .

---
