Cems Online So2 No No2 Continuous Emission Monitoring System Flue Gas Analyzer

Product Description

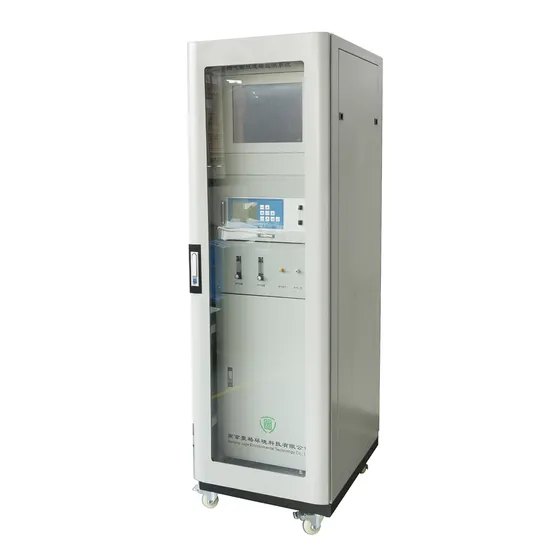

Product Description CEMS Online SO2 NO NO2 Continuous Emission Monitoring System Flue Gas Analyzer
>>Overview It can monitor the real-time concentration of particulate matter and gaseous pollutants in the flue gas emitted from stationary pollution sources (such as boilers, industrialfurnaces, incinerators, etc.), enabling supervision of production and emissions fromthe source.
CEMS (Continuous Emission Monitoring System) generally consists of three basic components: the gaseous pollutant monitoring unit (SO2, NO, NO2), the flue gas parameter monitoring unit (temperature, pressure, flow rate, O2, humidity), and the data acquisition and processing unit.
The sample gas passes through a high-temperature heated pipeline, undergoes dustremoval via atwo-stage filter,and is dehumidified by a two-stage condensation system before directly entering the gas chamber of the analyzer. The gas chamber ishoused within the analyzer and connected to an ultraviolet differential analyzer via ultraviolet optical fibers, achieving accurate measurement of the flue gas.
>>Feature
1) Secondary condensation for rapid water removal, reducing SO2 loss.
2) Long-life UV xenon lamp with high wavelength resolution ensures low detection limits, minimal temperature drift, fast response time, and accurate measurements.
3) PLC-controlled with adjustable parameters to adapt to complex working conditions.
4) Intelligent system design with traceable fault alarms for easy maintenance and troubleshooting.
5) Fully modular design, enabling flexible expansion of monitoring factors.
6) Flexible configuration: Users can choose between an NO2-NO converter or direct NO measurement as required.
>>Main technical parameters

Project			Index
Gaseous pollutant		So2	(0~200) mg/m3, the range can be customized
		No	(0~200) mg/m3, the range can be customized
		No2	(0~200) mg/m3, the range can be customized
		O2	(0~25)%
		Repetitiveness	≤2%
		24h zero drift and range drift	≤±2%f.s.
		One-week zero-point drift and range drift	≤±3%f.s.
		Linear error	≤±2%f.s.
		Response time	≤120s
Particulate matter		Measured range	(0.5~15)m
		Dust concentration range	(0~10) mg/m3, the range can be customized
		Accuracy	≤±2%f.s./24h
Flue gas parameters	Temperature	Measuring range	(0~300) ºC, is customizable
		Accuracy
	Pressure	Measuring range	(-10~10)kpa
		Accuracy
	Velocity of flow	Measuring range	(0~40) m/s, (0~2) kpa, the output is optional
		Accuracy
	Humidity	Measuring range	(0~40)vol%
		Accuracy
Data acquisition and processing		Data transmission module	8-way analog input
			1-channel rs485 communication interface
		IPC	6-way rs232 communication interface
			Windows7 operating system
		Operational software	Flue gas emission monitoring software monitor
Power Supply			Ac 220v,50hz,≤7kw

>>System composition
AG-UVA07 Flue Gas Analyzer
>>Overview The AG-UVA07 gas analyzer consists of several key components, including a light source, gas chamber, spectrometer, HMI module, interface board, temperature sensor, electrochemical oxygen sensor, and expandable modules.
The analyzer employs advanced technologies such as Differential Optical Absorption Spectroscopy (DOAS) and Partial Least Squares (PLS) algorithms for spectral data processing. It features a compact and versatile measurement chamber designed for high precision and ease of maintenance. Additionally, the device integrates a high-performance microprocessor with embedded software capable of signal processing, data computation, real-time monitoring, keyboard operations on the HMI, LCD display, alarm functions, and system settings.
>>Feature
1) Multi-pass gas chamber design for extended optical path and ultra-low gas concentration detection.
2) Low drift, high precision, low power consumption, fast response.
3) High-performance UV xenon lamp with long lifespan and vibration-resistant design.
4) Modular design for light source, detector, and core circuit, ensuring high reliability, scalability, and easy maintenance.
