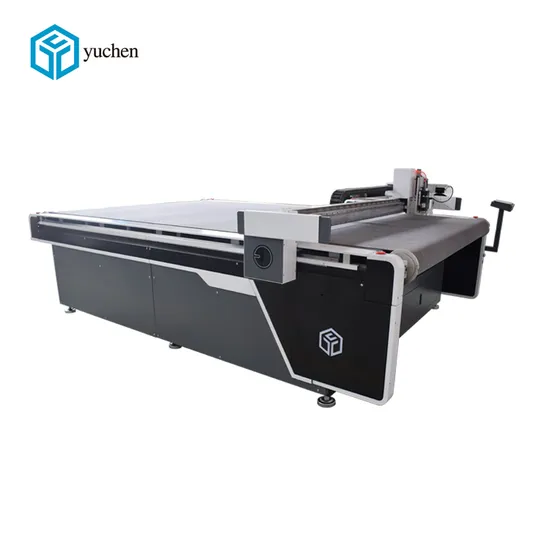

Yc-1625A Round Knife Cloth CNC Cutting Machine for Fabric Cotton Knitted Material

Product Description

YC-1625A round knife cloth CNC cutting machine for fabric cotton knitted material
Model: YC-1625A Machine size can be customized
Brand: Yuchen
Applicable cutting materials: knitted material, tatting material, fur, PU leather, jean demin, canvas, foam, artificial leather, diablement fort, blend fabrics,Cotton & Linen, etc.
Application: widely used in cloth, shoe, bag, footwear and leatherwear industriy.
Functions: cutting, drawing and punching.
Standard Equipments: combined cutting head, rotary cutting tool, drawing tool, punching tool(V-shape or circle shape), adjustable feeding stand(simple one), receiving box.
Parameter:

Model	YC-1625A	YC-1630A	YC-1830A
Working area	2500×1600mm	3000×1600mm	3000×1800mm
Operation properties	Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime
Safety device	Infrared adopted; sensitive response; safe and reliable
Maxi cutting speed	1200mm/s
Translational velocity	1500mm/s
Applicable materials	knitted material, tatting material, fur, PU leather, jean demin, canvas, foam, artificial leather, diablement fort, blend fabrics,Cotton & Linen, etc
Multifunctional head	wheel knife tool tool, V-cut tools, universal cutting tools
Cutting thickness	0.1-20mm (subject to material) 0.1-10.0mm (subject to the material cutting)
Cutting tolerance	±0.1mm
Transmission interface	Ethernet
Transmission system	Motor: Fuji Linear rail: Hiwin
Fixed mode	Vacuum absorb
Supply voltage	AC 220V 380V±10%,50HZ
Rated power	11KW

Sample Show

---
