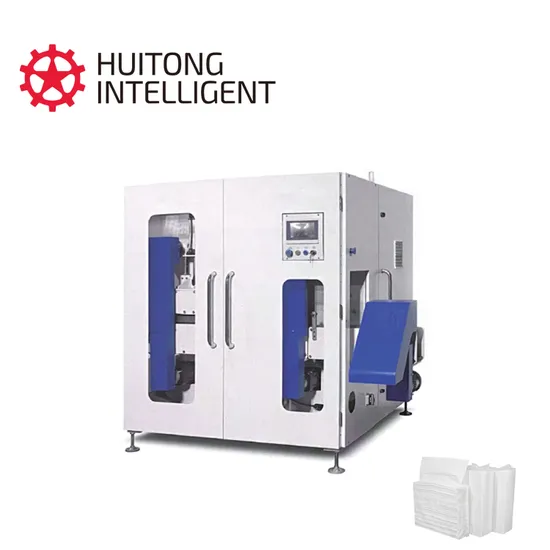

New-Style Customized Automatic Large Rotary Paper Cutter Machine

Product Description

High speed full servol log saw machine Product Description
ENHANCED PRODUCT DESCRIPTION:
Revolutionary High-speed full servo log saw with Advanced Plastic Type Transfer System for Maximum Efficiency
Ready to embark on a lucrative venture in facial tissue or cotton towel production? Discover the essential machinery you need to succeed!
♦Application: Soft tissue, box tissue, cream tissue, ooreless roll, etc.
♦Features: The design of separating the cutter block from the paperpressing and conveying mechanism(creative)is adopted. Thetelescopic scrap dropping design is adopted for head and tairemovingThe whole machine adopts the design of full servo motioncontrol The large round knife canbe grinded till outside diameter of 4430mm.
♦Main parameters: Production speed maximum 360 cuts/minute.
♦Walue: There are no scraps in the machine, avoiding fire due tountimely clean-up. The simple operationfor production changingenhances production efficiency, The utlization rate of the largerouncknife is high. a
Explore a variety of machine types, whether full auto or semi auto. We warmly invite you to consult with us and explore innovative production solutions tailored to your market's popular products.
Sophisticated Functions The leftward and rightward staggered design is adopted forpaper feeding and discharging of the double-channel machine, sas toimprove the utilization rate of the large round knife. The rear facingtype machine can be designed.
Comprehensive Machine Information:
Key Technical Parameters:

Control System	PLC program control,Servo drive,Touch screen operation
Feeding Mode	Same service drive, Synchronous location transmission with synchronous belt
Cut Off Mode	360 ° continuous rotary motion
Cut off system	PLC program control,Touch screen operationLength(remove the head and tail) 15mm-25mm
Cutting precision	Cut off error <1mm
Knife Sharpening system	Automatic sharpening, touch screen setting parameters

Log Cutter Outer Dia. (mm)	Φ610mm(min.Φ400mm)
Compressed Air (mpa)	0.5Mpa(bring your own)
Supply voltage	380V/50Hz
Total Power (KW)	8KW
Machine Size(mm)	1510*1530*1590mm
Machine weight(KG)	1000kg

Captivating Machine Picture:
Insightful Factory Information:
Exchange of foreign friends:
CERTIFICATE:

---
