Precision Hydraulic Iron Worker - Ideal for Cutting and Punching Metal Sheets

Product Description

Product Description

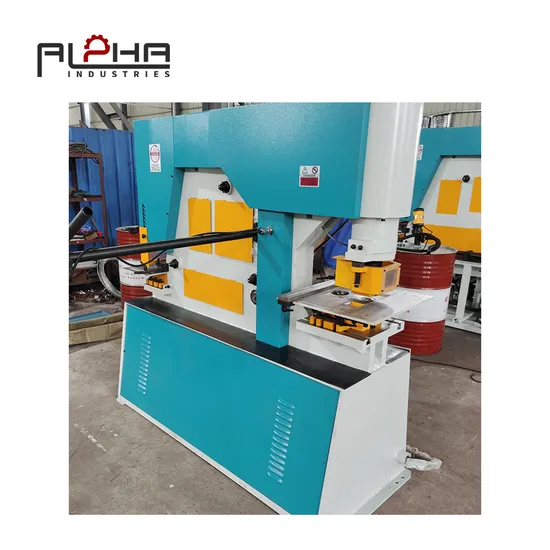

*IW series Iron Worker can cut and punch all kinds of meterials such as plate, square bar,angle,round bar,channel and so on. Also it can also bend the plate below 500mm, with itmultifunction,the machine is your first choice among the counterpart machine. *All the components are of the highest quality in their safety, function, capability and maintenance.
Product Parameters
Technical Parameters

Model No.	IW66	IW90	IW120	IW160
working pressure	550kN	750kN	1100kN	1400kN
max. cutting thickness	16mm	20mm	25mm	26mm
max. cutting length	400mm	480mm	600mm	600mm
tensile strength of sheet metal	≤450N/mm2	≤450N/mm2	≤450N/mm2	≤450N/mm2
shear angle	7°	8°	8°	8°
stroke of ram	80mm	80mm	80mm	80mm
stroke times	8min	8min	8min	8min
depth of throat	300mm	355mm	400mm	600mm
max. capacities	25x16mm	30x20mm	35x25mm	38x26mm
main motor power	4kW	5.5kW	7.5kW	11 kW
length of machine	1640mm	1860mm	2355mm	2680mm
width of machine	730mm	790mm	960mm	1040mm
height of machine	1770mm	1900mm	2090mm	2300mm
G.W.	1700kg	2200kg	4800kg	6200kg

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
