High Quality 2.55 Meters by 6 Meters Steam Generator for Concentrated Solar Power Plant

US$3,190.00-6,490.00 2 Sets (MOQ)

Basic Info.

Model NO.
2.55m*6m
Certification
API, ISO, CB, CE
Concentrating
Yes
Working Temperature Range
High Temperature
Type
Pressurized
Application
Water Heater, Solar Thermal, Air Conditioning System
Pipe Material
Stainless Steel
Transport Package
Wooden Box, Steel Structure
Specification
2.55m*6m
Trademark
MLSUN
Origin
China
Production Capacity
500000m2/Year

Packaging & Delivery

Package Size
600.00cm * 255.00cm * 255.00cm
Package Gross Weight
340.000kg

Product Description

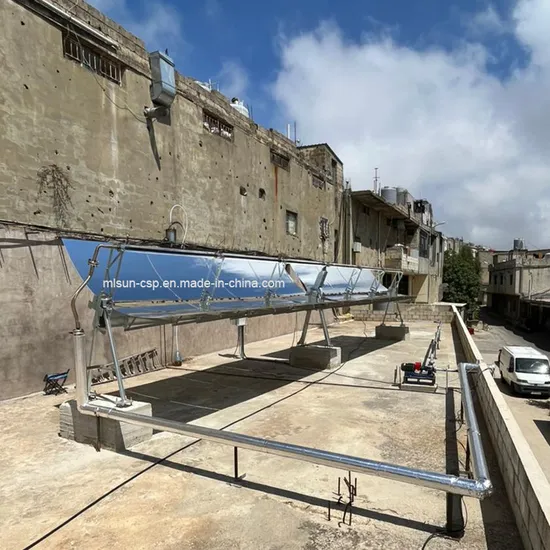

We manufacture Parabolic Troughs for Concentrated Solar Power plants.There are 2 regular models:
Parabolic Trough 2.55m*6m, Parabolic Trough 5.77m*12m.
Parabolic Trough 2.55m*6m is used for seawater desalination, hot water, hot air, drying, room heating, especially generating steam.
Parabolic Trough 5.77m*12m is used for solar thermal power plants by generating high temperature and high pressure steam to drive the steam turbine, in order to generate electricity.
No. Parabolic Trough Concentrator PTC 2.55m*6m PTC 5.77m*12m
1 Trough width 2.55 m 5.77 m
2 Trough length 6 m 12 m
3 Aperture area 15.3 sqm 69.24 sqm
4 Tracking accuracy 0.1° 0.1°
5 Receiver tube
(glass-to-metal)
3 pieces 3 pieces
6 Receiver tube material SUS304 stainless steel SS321/316L stainless steel
7 Working temperature 300ºC 400ºC
8 Working pressure 40 bar 40 bar
9 Driving system 1 set 1 set
10 Sun-tracking and control system 1 set 1 set
