Full Electric Forklift 1ton 1.5 Ton Pallet Stacker Electric Stacker

Product Description

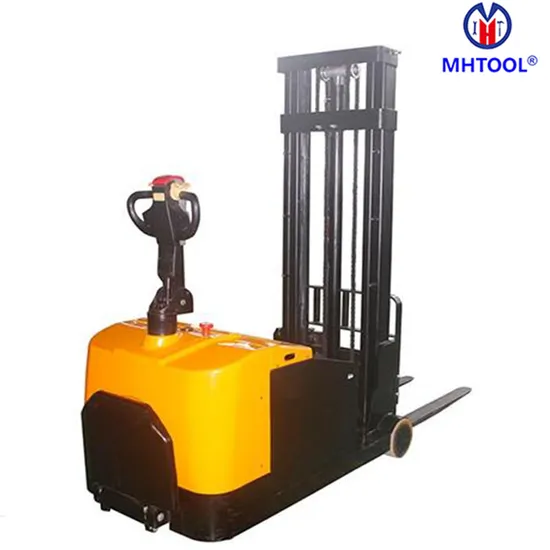

KX-CDD-C-15---Electric Stacker:
Feature & specification:
Standing full electric stacker, with movable pedal, it can reduce the operator' s work intensity.
Handle accord with human body engineering design, compact and steady. All operation can be done through handle.
Durable large capacity traction battery, convenient and rapid charging.
Superpower driving and lifting dc motor, it has good performance of speed regulation, realize larger starting and braking torque function.
The stacker has reasonable design, compact structure and goodlooking
appearance. C type forming steel door frame is the biggest security.
Main technical data

Articles/model	unit	KX-CDD-C-15
Drive mode	QD	Electric
Driving mode	JS	Stand/Step
Rated load capacity	kg	1500
Load center distance	PU	500
Wheel material	mm	Polyurethane
Front wheel	mm	Φ210X80
Rear wheel	mm	Φ115X55
Driving wheel	mm	Φ250X75
Lifting height	mm	1600/2000/2500/3000
Door frame retract height	mm	2068/1568/1818/2068
Door frame Max.Working height	mm	2068/2568/3068/3568
Fork length	mm	1150/1220
Fork outside width	mm	660(adjustable)
Overall width	mm	850
Overall length (include pedal)	mm	2650/3150
Turning radius	mm	1725
Driving speed. No-load/full-load	km/h	4.2/3.5
Lifting speed. No-load/full-load	mm/s	90/40
Lowering speed. No-load/full-load	mm/s	100/120
Climbing gradient. Full-load/no-load		6/4.5
Brake mode	Z	electromagnetic braking
Battery voltage/rated capacity	v/ah	2X12/120
Driving motor	V/Kw	1.2
Lifting motor	V/Ah	2.2
NW/GW	kg	1470/1486

KX-CDSS10/15/20---Manual Stacker:
Feature & specification:
Single frame manual stacker is a kind of lifting handling and short-distance transportation tool.
It has the following features: steady lifting, flexible moving, convenient operation. universal wheel has brake device, safe and reliable.
It has reasonable design, compact structure and goodlooking appearance, it's necessary tools for workshop,warehouse, wharf and station.
Main technical data:

Articles/model	unit	KX-CDSS10			KX-CDSS15			KX-CDSS20
Q Rated load	kg	1000			1500			2000
C Load center distance	mm	460
Front wheel size	mm	φ80×70
Steering wheel size	mm	φ180×50
h Fork lowest height	mm	1600/2000/2500
h1 Max.fork height	mm	2068/2568/3068
L Fork length	mm	910(1150)
T Fork adjustable width	mm	320/680
B Overall width	mm	1045
L1 Overall length	mm	1585
Wa Turning radius	mm	1480
V Distance between front and rear wheels	mm	1200
Net weight	kg	253/267	286/300	306/302	264/278	306/320	336/350	271/285	316/330	346/360

KX-DZC20/30---Electronic Scale Pallet Truck:
Feature:
The truck increase a high precision digital display scale.
It's one short-distance transportation facility, realize transport and weighing synchronously, improve the working efficiency.
It adopts international measurement standard of high precision weighing sensor. accuracy 0.1% of the weight. it has peeling and sum function. the scale can be shockproof, dust proof and waterproof.
Main technical data

Articles/model	unit	KX-DZC20	KX-DZC30
Q Rated load capacity	kg	2000	3000
Carrying wheel	mm	φ75×60	φ80×70
Steering wheel	mm	φ180×50
h Fork lowered height	mm	85	88
h1 Fork lifting height	mm	200	203
h×b Fork size	mm	55×160
L Fork length	mm	1150×1220
B Fork width	mm	540×685
L1 Overall length	mm	1550×1620
Battery	V/Ah	7.4/40
Battery life	h	40
Battery type	DL	Lithium
Display mode	FS	LCD
Weight	KG	110/113	117/120

Our After-sale Services-- within 24 Hours: (1)....Before--Sale Service :
01..Quality Control: Strictly Production Request base on signed contract ;
02..Delivery Time: Guarantee within contracted delivery time ;
03..Photos: Send photos to our customer after finish production and packing ;
04..Packing Details:Give complete packing size table to our customer;
05..Brand: Respect our customers' advice to use our customers' own brand & logo ;
06..Documents:Provide high efficiency service to post you all required customs clearance documents by DHL or TNT .
(2)....After--Sale Service :
01..Reply : Fast reply all your questions on line or by email or by telephone ;
02..Quality Problems:Our factory is responsible for any problems if it is resulted by our reasons (Such as give you free new parts to repair it or give enough some compensation cost to you) ;
03..Safe Operating: Pls remind your customers to respect our Operating Manual to operate our machine rightly, to guarantee Safe when operate our machine.

---
