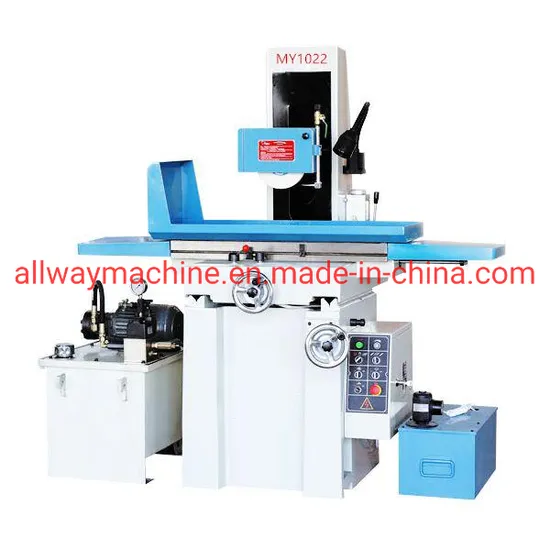

Hydraulic Surface Grinder Machine/Surface Grinding Machine

Product Description

Product Description
Surface Grinding Machine (M820)
3-axis manual operation
High rigidity H-frame column with spindle center to table
Enhanced ribbed full cast iron base
Enlarged spindle housing for heavier grinding
Cartridge w / 4 preloaded class 7 (P4) bearing
Roller steel balls on linear table ways for easy and smooth longitudinal movements.
Double-V saddle ways for rigidity
Manual lubrication system
They have compact construction, excellent capability, and suitable to grinding surface and complex form surface by form dressed whell. This kind of machine can be performed without power feeding. The distance between the grinding wheel and working table has been enlarged because of its reliablity, flexibility, high accuracy, high rigidity, small thermo-deformation and low noise.
1 Adopt the exceeding precise class7(P4 level) ball bearing for spindle
2 Bring transmission by synchronous belt, operating simple and convenient
Grinding Machine/Grinder (M820)
Hydraulic longitudinal, power corss and vertical hand infeeds operation.
All 3 axises are roller bearing slides
Hardened & ground ways (removable) on table, carriage / saddle & column
Cartridge spindle W/ 4 preloaded class 7 (P4) bearing for better workpiece accuracy.
Table, saddle & column move on linear table ways MID-level downfeed handfeel placement for convenient and easy position for Z-axis.
Manual lubrication system
Technical and specification:
Table size: 200 X 500mm
Max. Grinding size: 210 X 520X290mm
Max. Longitudinal travel: 220mm
Max. Transverse travel: 530mm
Max. Vertical travel: 490mm
Grinding wheel speed: 2850rpm
Wheelhead size: (OD X W X ID) 200 X 20 X 31.75mm

Technical Parameters		Unit	M820
Max.workpiece to be Ground ( L×W×H)		mm	520×220×490
Max. Grinding Length		mm	530
Max. Grinding Width		mm	220
Distance From Table Surface To Spindle Center		mm	490
Slide way			V-type rail with Steel-ball
V-type rail with Steel-ball		Kg	200
Table Size (L×W)		mm	480×200
Number of T -Slot		mm×n	12×1
Speed OF Working Table		m/min	323
Cross Feed On Handwheel		mm	0.02/Graduation 2.5/revolution
Vertical Feed On Handwheel		mm	0.01/Graduation 1.25/revolution
Wheel Size (dia.×width×bore )		mm	200×16×31.75
Spindle Speeds	50Hz	rpm	2850
			0-6000
Spindle Motor		Kw	1.1
Coolant Pump		Kw	0.4
Minimum of Numerical Display		mm
Machine Size (L×W×H)		mm	1680×1140×1800
Packing Size (L×W×H)		mm	1140×1240×1960
Gross\Net		T	O.80\0.70

---
