Wall-Mounted Type Molten Steel Temperature Thermometer Smelting Thermometer

Product Description

Abstract:

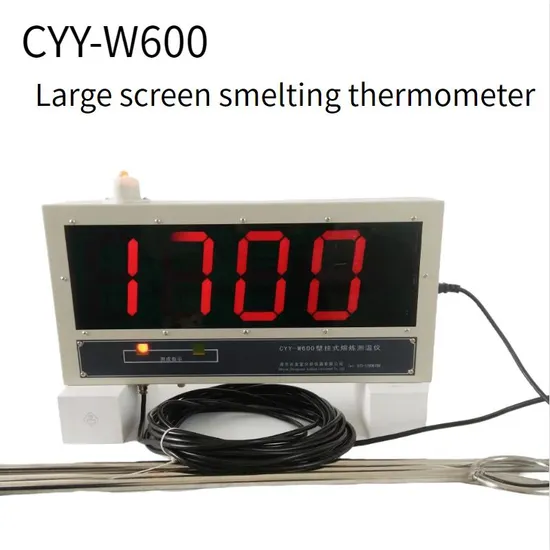

CYY-W600 wall-mounted large-screen melting thermometer is a high-precision thermometer developed for smelting, casting and other industries to quickly measure the temperature of molten metal (0-2000 degrees) during the melting process in front of the furnace. Large screen display is convenient for direct reading.

1.Application of CYY-W600 large screen melting thermometer:
CYY-W600 large-screen melting thermometer is a high-precision special instrument developed for smelting, casting and other industries to quickly measure the temperature of molten metal during the melting process. The instrument is matched with a suitable thermocouple to perform precise and rapid temperature measurement in a variety of melting occasions.

2. Features of CYY-W600 large-screen melting thermometer:
The integrated design is adopted. According to the characteristics of bad working environment and high temperature, the large screen smelting thermometer adopts 5-inch digital tube (word height 128mm) display, which is suitable for long-distance reading, viewing and all metal shell design, so it is more durable. In order to ensure the long-term stable operation of the instrument, the high-performance single-chip microcomputer is used as the core, high-precision measuring sensors are adopted, and a variety of intelligent processing technologies are adopted. The anti-interference ability of the instrument is improved.

3.Technical performance index and measurement accuracy
1. Resolution (ºC): 1
2. Response time (S): 1

3. Environmental conditions: Working conditions: Temperature (ºC): 0~50; Humidity (%RH): 5~80

4. Storage conditions: Temperature (ºC): -20~60; Humidity (%RH): 5~90

5. Power source: AC220V+10%
6. Dimensions of the large screen: 500×238×90 (mm)
7.When the thermometer is used, it is necessary to use a temperature probe (a thermocouple of about 30cm length) together
Nanjing Changyouyi Analytical Instrument Co., Ltd. is a famous domestic research and development manufacturer of analytical instruments, a contract and trustworthy enterprise. The company integrates R&D, production, sales, training, maintenance, and technical consultation, and has gathered a group of high-tech senior professionals who have been engaged in analytical instruments for a long time. Incorporating domestic and foreign microcomputer and sensor technology, infrared technology and optics, machinery, inspection and other technologies, starting from the actual needs of customers, research and development of a series of high-speed analysis instruments and supporting testing equipment, such as: carbon silicon analyzer in front of furnace , Melting thermometer in front of furnace, infrared carbon and sulfur analyzer, multi-element analyzer, spectrum analyzer, metallographic analyzer, five element analyzer, copper alloy & aluminum alloy analyzer, ore analyzer and other laboratory testing equipment.

---
