Lifting Machine Port 45 Ton Container Reach Stacker Srsc45h1 Srsc45h2

Product Description

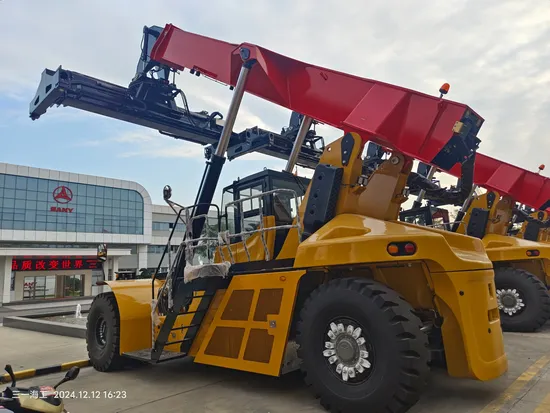

Lifting Machine Port 45 Ton Container Reach Stacker SRSC45H1 SRSC45H2

Product Description
Intelligent Anti-rollover Protection · Intelligent control technology is applied to detect equipment's real-time working parameters and prevent rollover operation. It is highly intelligent, ensuring safety and care-free operation. Anti-collision Technology of the Spreaders While Revolving · Intelligent control of the positions of spreaders and booms can effectively prevent collision among the spreader, frame and boom, avoiding accidents by faulty operation and greatly reducing labor intensity. Automatic Fire Extinguishing Technology · The pipeline network automatic fire extinguisher with strong spray can realize fire alarm, anti-flaming and fire extinction functions. The fireproof performance is steady and reliable. Solid Tire Suspension Technology · We provide solid tire flexible damping system according to customers' needs to achieve safer operation and lower maintenance cost. Combining with flexible suspension technology, it significantly reduces the shocking load, enhances operation comfort and prolongs component service life. Automatic Braking Technology upon Reversing · Adopting technologies like laser scanning and graphic identification, the machine can precisely detect people or obstacles within the driving route and then brakes automatically to prevent accidents. It is highly intelligent with high safety. Reliable Structure Design · Designed by SANYY China and Germany jointly, the equipment is assured to be highly reliable and endurable by adopting full-digit prototype design system, going through FEA, dynamics simulation analysis, as well as strict endurance and vibration tests. Reliable Power System · Using world famous-brand engines like VOLVOo and CUMINS which are reliable in quality and strong in power, combining the advanced power matching and control technology, the equipment is greatly optimized in dynamic performance. Proper protection for the engine and gearbox significantly prolongs their service life. Vertical Lifting Technologies of Boom · The intelligent controller monitors the boom' s parameters at real-time, and automatically adjusts the position of the boom to ensure vertical lifting of the spreader, which makes stacking safer and improves work efficiency significantly. Design to be Lighter · The structure is optimized to make it lighter yet stronger.


Product Parameters

Equipment model	SRSC45H1
Model	TAD1151
Rated power (kW)	265/2100
Rated torque (N·m)	1780/1260
Vehicle weight (kg)	72000
Cab noise (dB(A))	≤72
Climbing ability (no load/load) (%)	39/32
Maximum lifting speed (no load/load) (mm/s)	420/250
Maximum rate of descent (no load/load) (mm/s)	360/300
Maximum travel speed (no load/load) (km/h)	25/21
Transmission model	15.5HR36000
Drive axle model	Kessler D102 PL341
Overall dimension (length × width × height) (mm)	L11340×6053-12185×4770
Wheelbase (mm)	6000
Minimum ground clearance (mm)	350
Front wheel pitch (mm)	3033
Rear wheel pitch (mm)	2790
Minimum turning radius (mm)	8000
model	SDJ450F
Lateral displacement distance (mm)	±800
Maximum load (kg)	7800
Maximum lifting height (mm)	15100
Boom Angle (°)	0~60
