Good Reliability China Leading Brand Sidaier Agricultural Machinery Soil Cultivation Machine Potato Ridge Former

Product Description

Product Parameters

Code No.	3ZMP-180	Ditcher type	Double-sided Plow Point
Structural form	Trifilar suspension type	Ridge type	Adjustable
Machine Size(L*W*H) :	2370×1920×1530mm	ridge size	Adjustable
Machine Weight:	860kg	Fertilizer	optional
Power Required:	≥45kw	Working Ridge	2ridges
Ridge spacing	900mm	Working Width	1800mm

Product Description

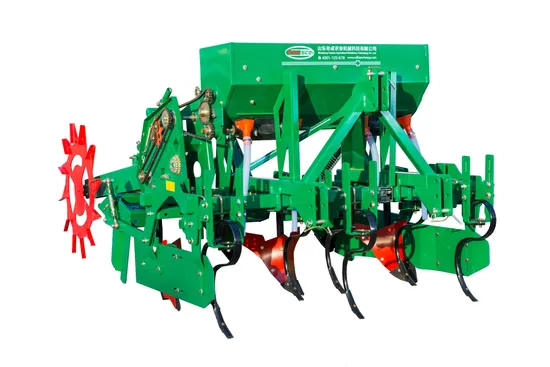

The 3ZMP-180 potato cultivator is an agricultural machinery used for soil cultivation in potato, which can complete soil loosening, weeding, ridge building, topdressing and other operations, and also improve soil temperature and moisture conservation. This kind of plough body adopts a new curved structure, which is very suitable for ridge raising in the cold regions, especially for the medium tillage of tuber crops. The ridge body is small in the cross section and large in the middle and bulging in the outside. The shape of the ridge body is smooth and neat, and the tuber storage ability of a single ridge is increased. Details
The small elastic teeth are composed of an S-arc elastic shovel handle and a double-pointed loose soil shovel, which is mainly used to loosen the soil and remove weeds on both sides of potato ridges, and its depth can be adjusted according to the actual situation.
The soil loosening and ridge-raising device is mainly composed of a shovel wing, a shovel body, a shovel tip and a shovel handle, which is mainly used to loosen the soil and lay soil to the ridges on both sides. The depth of the tip can be adjusted by adjusting the height of the handle, and the Angle of the shovel can be adjusted by changing the position of the small bolt below. The width, height and amount of soil can be adjusted by adjusting the Angle of shovel wing. The tip of the shovel is heat-treated and has high strength, hardness and wear resistance. The rigid connection as shown in the diagram enables the relatively hard soil to achieve a good soil loosening effect.
The ridge shaper is composed of a forming frame body, an arc bending plate, a movable cover plate and a guarded blade. The arc-shaped lower bending plate mainly makes the cultivated soil into an arc-shaped trapezoidal shape. Such ridges are more full than the soil, which is more conducive to the growth of potatoes. The width of ridges can be adjusted by adjusting the opening size of the bending plate under the arc. The ridge height is adjusted by adjusting the tie rod. After heat treatment, the guard blade has high strength, hardness and wear resistance, and can protect the curved plate from being worn. When the potatoes emerge, to prevent damage to the seedlings, the movable cover can be removed.
A compression spring connecting rod is composed of a connecting frame, a compression spring, a connecting rod and a retaining sleeve. When working, the compression spring plays the role of downward pressure on the shaper, so that its forming is more complete. When the machine needs to turn around or walk on the road, the connecting rod and the retaining sleeve play the role of preventing the forming machine to fall, by adjusting the position of the hole in the rod can be adjusted to adjust its height from the ground.
Our Advantages
This kind of plough body adopts a new curved structure, which is very suitable for ridge raising in cold regions, especially for the medium tillage of tuber crops. The ridge body is small in the cross section and large in the middle and bulging in the outside. The shape of the ridge body is smooth and neat, and the tuber storage ability of a single ridge is increased.

---
