Stainless Steel Dairy Farm Cow Manure Scraper

Product Description

Product Introduction
The scraper system cleans the manure with the chain pulling the scraper, while no collision to the cow. The wear and tear parts are made of special heat treated material, lifespan 5 times longer than ordinary casting material.
The scraper system mainly divides into two types according to the length of the manure passage:
The first type is single axis scraper, suitable for barn less than 150 meters long,type GFB-1
The second type is three axes steering scraper, suitable for long-distance barn about 150-240 meters long,type GFB-3.
Sketch Map
Specification
Product Composition--Drive Unit,scraper,steering wheel,control Unit,the chain,etc.
Moving speed:4-6s meters per minute
Maximum distance that can be scraped: 150m to 240m
Motor type: Siemens or equivalent quality, 2.2KW,380V
Reducer: China Brand,gear drive,output torque 3720//3580Nm, IP55trq
Chain material: 25Mnv,4kg/meter,Max chain tighten distance:800mm
Scraper height: 210mm,Q235
Total length according to the length of the cowshed,total price change accordingly.

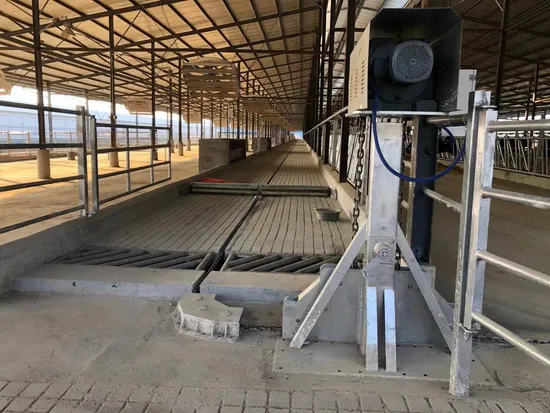

Application
Details
FAQ Q1. Are you a factory or trading company?A:We are a professional and comprehensive dairy farm equipment supplier integrating R&D, production and sales. Q2.May I visit your factory?A:Sure, we warmly welcome you all pay a visit to our company. We can arrange pick ups at airport and station. Q3: Can you guarantee your quality?A: Of course. We have about 20 years experiences in this field. We have skillful production,good workmanship as well as strict QC. we put high quality on our reputation.

---
