Medical Equipment Factory Product of Anesthesia Machine Jinling-01

Product Description

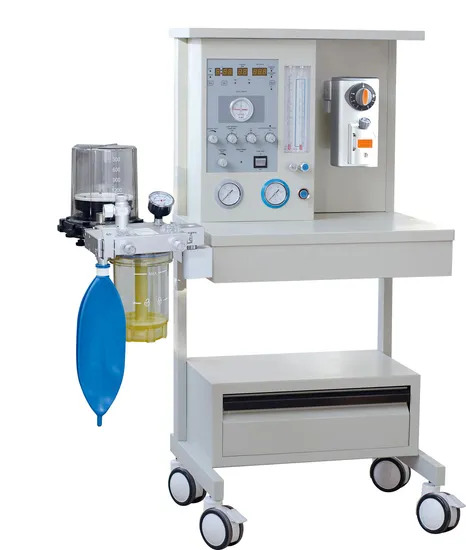

Medical Equipment Factory product of Anesthesia Machine JINLING-01
Common Features
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Fully metallic frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms
Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
Multi-parameter Patient Model: Optional

Specifications

Model	JINLING-01 (Standard Model)	JINLING-01 (Advanced Model)
Display	LED
Flowmeter Range	O2: 0.1-10L/min
	N2O: 0.1-10L/min
Ventilation Mode	IPPV, SIPPV, MANUAL
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 50-1500ml
	Display range: 0-2000ml
Respiratory Rate	4-40bpm
Inspiratory/Expiratory (I:E) Ratio	1:1.5-1:3.0
Inspiratory Pressure Trigger	.-10-10cmH2O
Vaporizer Concentration Ranges	0-5%
Vaporizer Slots	Single PA-80 type slot	Double PA-80 type slots

---
