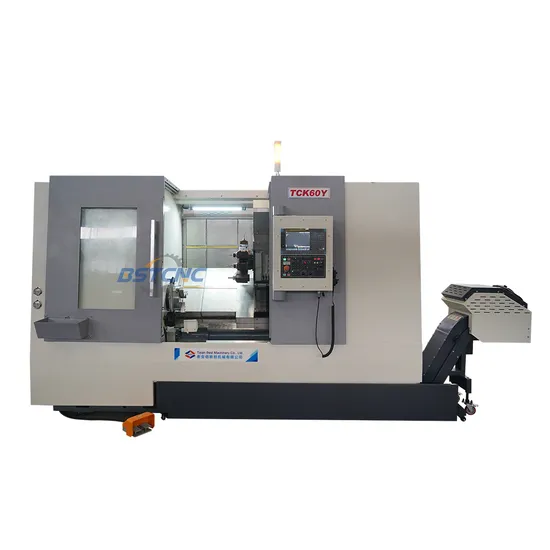

Tck60y Automatic High Speed Slant Bed Turning Drilling Milling CNC Center Machine

Product Description

Product Description
The Machine Tool is slant bed Turn-Milling Machine, which has X, Y, Z, C axis, and controlled by servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servo motor. This machine not only can turn excircle, end face, thread of Rod type and Plate type work piece in kinds of material, but also can mill, drill kinds of radial and axial hook face, etc. many kinds processes. This machine is suitable to process small work piece in a high efficient.
TCK60Y SPECIFICATION AND PARAMETER:

Item		Unit	Specification	Remark
Max.swing diameter over bed		mm	600
Max.processing length		mm	500
Max. processing diameter		mm	460	12-station power turret
Spindle head form			A2-6	Motor spindle
Spindle bore		mm	65
Bar through spindle bore		mm	50
Main spindle	Spindle speed range	r/min	50~4500
	Main motor power	kW	22/30
X axis rapid feed		m/min	30
Z axis rapid feed		m/min	30
X axis travel		mm	280
Z axis travel		mm	550
Y axis travel		mm	+50/-50
C axis travel			360°
Tailstock travel		mm	450
Tailstock sleeve taper			MT5
Cutting Tool size	Outer circle cutting tool	mm	25×25
	Boring tool diameter	mm	Ф32/Ф40
ATC choose the nearest tool			Yes
Weight		kg	5300
Machine size(LxWxH)		mm	2800×2000×2200

Standard configuration: Optional configuration:
-GSK988TA control system; -Siemens808D,Fanuc0i-TF,Syntec22TA,Mitsubishi;
-3 jaws 8''hydraulic chuck with hydraulic station; -3-jaws 10'' hydraulic chuck;
-12 station power turret BMT40; -12 station Power turret BMT45;
-Hydraulic tailstock; -Chip conveyor ;
-Auto servo bar feeder and parts catcher;

---
