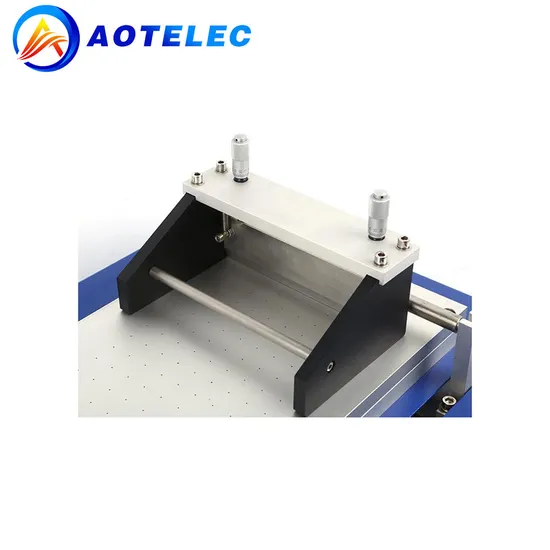

AOTELEC Lithium Battery Lab Automatic Vacuum Film Coater For Electrode Coating Machine

US$2,499.00
1-4 Pieces
US$2,399.00
5-9 Pieces
US$2,299.00
10+ Pieces

Basic Info.

Model NO.
AOT-FCM-100B
Type
/
Coating
/
Substrate
/
Certification
CE
Condition
New
Item Name
AOT-FCM-100B
Voltage
AC 220V 50HZ (110V optional)
Power
200W
Coating Speed
0~100mm/s
Vacuum Plate
The machine is equipped with vacuum aluminum plate
Max Stroke
300mm (customized size is available)
Film Width
100mm
Dimension of vacuum plate
L410mm×W200mm×H30mm
Regulating range of applicator
0.01~3.5mm
Weight
50KG
Dimension
L550mm*W310*H320mm
Transport Package
Wooden Case
Specification
L550mm× W310mm× H320mm
Trademark
AOTELEC
Origin
China

Product Description

Product Description
Battery cell lab equipment ( VACUUM COATER ) :
This equipment is widely used for research of all kinds of film coating,
like ceramic films, crystal films, battery material films, and special nano-films.

Features :
1. Coating speed is at the range of 0~100mm, adjustable.
2. Vacuum aluminum plate, used to place and take off the substrate in quick.
3. Stroke can be regulated by travel switch at the range of 0~300mm.
4. Accuracy of adjustable coating machine is 0.01mm.
5. Small dimension saves space

Item Name Battery Cell Vacuum Coating Machine AOT-FCM-100B
Voltage AC 220V 50HZ (110V optional)
Power 200W
Coating Speed 0~100mm/s
Vacuum Plate The machine is equipped with vacuum aluminum plate
Max Stroke 300mm (customized size is available)
Film Width 100mm
Dimension of vacuum plate L410mm×W200mm×H30mm
Regulating range of applicator 0.01~3.5mm
Weight 50KG
Dimension L550mm×W310mm×H320mm

Company Profile
Xiamen AOT Battery Equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certifications
The products produced by the company have obtained anumber of certificates
Cooperative Brand
Packaging & Shipping
FAQ
Q1:How long do you need to prepare my goods?A:3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).Q2:Can we have our logo or company name to be printed on products or package?A:Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.Q3:How can I install and operate the machine by myself?A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.Q4:How to get technical support after purchasing?A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.Q5:What's the warranty for the items?A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
