US$1,500.00-9,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
ZLP250 ZLP500 ZLP630 ZLP800 ZLP1000
Certification
CE, ISO 9001
Max. Lifting Height
300 M
Voltage
220-440V, 50-60Hz, 3phase
Operate System
Electrical, Auto, Manual
Surface Treatment
Painted, Hot Galvanized
Length of Platform
From 1m to 10m
Lift Drive / Actuation
Electric Motor
Safety Lock
Ls 30, 20-30kn.M
Rated Load(Kg)
200, 500, 630, 800, 1000
Matrial
Steel, Aluminum Alloy
Wire Rope Dia.
8.3/8.6/9.1/9.3/10.2mm
Machinery Test Report
Provided
Usage
Electrical Work Gondola Equipment
Transport Package
Paper Box and Wooden Cases or as Your Requirements
Specification
Steel, Aluminum Alloy
Trademark
Steel, Aluminum Alloy
Production Capacity
5000sets/Year
Product Description

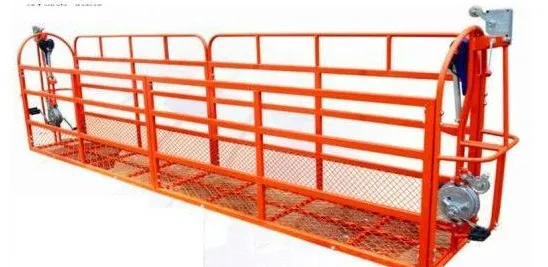

Aluminum Construction Platform Technical parameters of construction cleaning cradle:
| model | zlp500 | zlp630 | zlp800 | zlp1000 |
| appearance | painting/hot galvanized |
| fabrication material | steel/aluminum alloy |
| rated load | 500kg | 630kg | 800kg | 1000kg |
| lifting speed | 9-11m/min | 9-11m/min | 8-10m/min | 8-10m/min |
| motor power | 2x1.5kw | 2x1.5kw | 2x1.8kw | 2x2.2kw |
| brake torque | 16km | 16km | 16km | 16km |
| steel rope angle adjusting range | 3°-8° | 3°-8° | 3°-8° | 3°-8° |
| distance between two steel rope | ≤100mm | ≤100m | ≤100m | ≤100m |
| counter weight(optional) | 25kgx30pcs | 25kgx36pcs | 25kgx40pcs | 25kgx44pcs |
| diameter of steel rope | 8.3mm | 8.3mm | 9.1mm | 10.2mm |
| max lifting height(m) | 300m | 300m | 300m | 300m |
| motor rotation speed | 1420r/min | 1420r/min | 1420r/min | 1420r/min |
| voltage(3phases)(optional) | 220v/380v/415v/440v 50hz/60hz to be OEM |
Show
Main Parts of construction cleaning cradle:
| 1. construction cradle(basket): Steel or Aluminum Alloy (painted or hot galvanized) | 6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm |
| 2. Suspension Mechanism: Steel (painted or hot galvanized) | 7. Safety rope: 18mm,20mm |
| 3. Electric hoists:LTD6.3 or LTD8 | 8. Electric cable: 3*2.5+2*1.5 |
| 4. Safety Lock: LST30 | 9. Counterweights: Cement , cement with steel cover & Iron counterweight |
| 5. Electric control box: Along with hoists | 10. Spare parts |
Packing and Shipping
Packages Details of construction cleaning cradle for high buildings and windows cleaning
| package | platform | counter weight | hoist & safety lock | control panel & other smallparts |
| film | pallet | wooden case | carton box |
Our Company
The suspended construction cradle can be customized according to customers'requirements(drawing, specifications and so on).
After-sale services
1.Quality Assurance:
Good quality is assured by advanced manufacturing technology.and all products will be checked by our quality-control manager. |
2.Excellent Package:
We provide standard,strong,protective package for our products to prevent is from outer damage. |
3.Quickly Response:
Detailed information,specific model and price of price of products will be provided quickly after receiving your inquiry. |
Welcome to visit our factory!
