Automatic Plastic Injection Molding Machine for Lunch Food Box and Container Making

Product Description

Automatic Plastic Lunch Food Box and Container Making Injection Molding Machine
Product Parameters

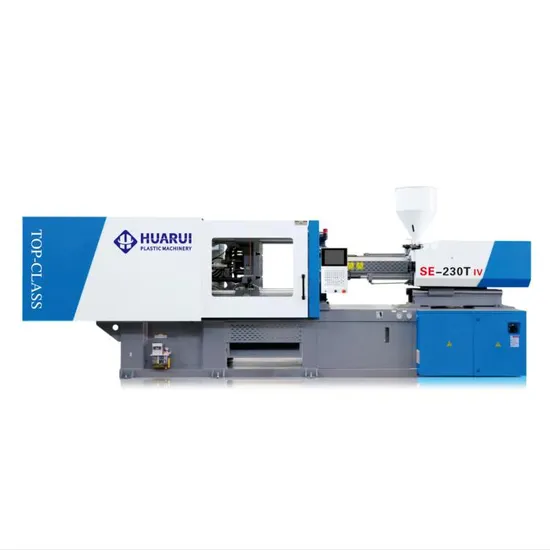

SE-230T IV Plastic Injection Molding Machine Information
Item		Unit		A		B		C
Screw diameter		mm		45		50		55
Theoretical shot volume		cm³		398		491		594
Shot weight (PS)		g		362		447		541
Shot weight (PS)		oz		12.8		15.8		19.1
Length/Diameter ratio		L/D		22.2		20		18.2
Injection pressure		Bar		2299		1862		1539
Injection rate		cm³/sec		152		188		228
Max.screw speed		rpm		200
Clamping force		KN		2300
Max.daylight		mm		820*770
Open stroke		mm		520
Space Between Tie-bars		mm		570*520
Min mould dimension		mm		220
Mould thickness range		mm		570
Ejector force		KN		80
Ejector stroke		mm		150
No.of ejector pins		unit		9
Max.motor power		KW		26
System pressure		MPa		175
Heater input power		KW		16
Oil filling capacity		L		200
Machine size		M		5.8*1.4*2.2
Net weight		KG		7300

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
