Agricultural Power Harrow Factory Customized Klf-Tbs128 Shift Gear Cultivator Rake Tiller Gearbox

US$200.00-500.00 1 Piece (MOQ)

Basic Info.

Model NO.

KLF-TBS128

Application Field

Agriculture, Livestock, Aquaculture, Forestry

Farming Policy

Dry Cultivating Machinery

Power Source

Tractor

Operation

Soil Preparation Machinery, Continuous Running Operation

Traction Type

Traction

Drive Type

Gear Drive

Arbor Configuration

Horizontal Axis

Certification

ISO

Color

Black

Warranty

OEM

Available

Ratio

1.31:1

Input

62HP

Input r.p.m

540

Output r.p.m

412

Input N.M

796

Output N.M

1043

Transport Package

Crate

Specification

Cast iron

Trademark

KADIVA

Origin

Zhejiang China

HS Code

8483409090

Production Capacity

50000PCS/Month

Product Description

Agricultural Power Harrow Factory Customized KLF-TBS128 Shift Gear Cultivator Rake Tiller Gearbox Product Description

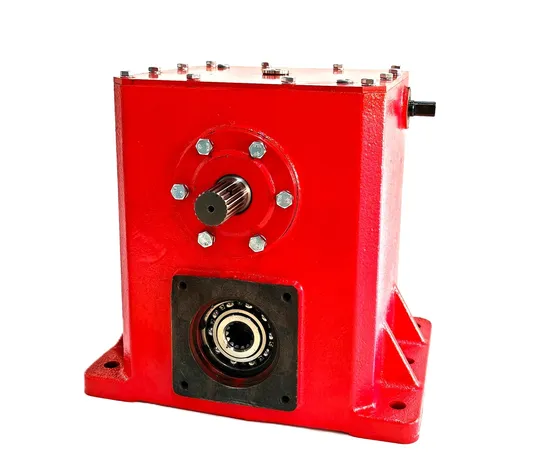

KLF-TBS128 Rotary tiller/ beater transmission gearbox
This product is used in the main transmission gearbox of through-shaft rotary tillers and beaters. It is derived from European and American design concepts. The main transmission box drives the side box and drives the cutter shaft to rotate to achieve plowing operations. Split welded pipe and half shaft structure. It achieves the advantages of easy replacement and maintenance, and the design is not limited by disadvantages such as length. The flange end on one side uses imported maintenance-free bearings for a longer service life. The transmission half shaft is wrapped in a welded pipe, which is safer to use and has a more beautiful design. Product Parameters
