CNC Laser Metal Cutting Machine Price / Laser Cutting Metal Machines/Laser Marking and Cutting Machine

Product Description

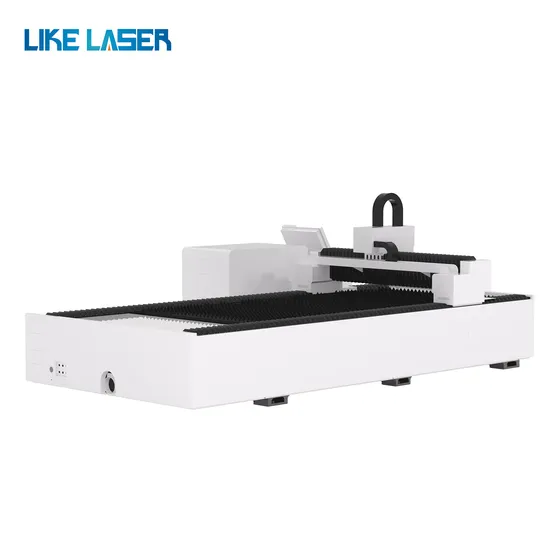

Fiber Laser Cutting Machine DESCRIPTION
Stable optical system and control system. Open worktable with small floor area and flexibile operation. High performance, factory packaged fIber laser, stable performance. High quality, fast and efficient cutting, smooth and beautiful cutting surface. Adopt high-precision reducer, gear rack and guide screw to ensure stable and precise operation of the moving shaft. Stable optical system and control system. Open worktable with small floor area and flexibile operation. High performance, factory packaged fIber laser, stable performance. High quality, fast and efficient cutting, smooth and beautiful cutting surface. Adopt high-precision reducer, gear rack and guide screw to ensure stable and precise operation of the moving shaft. L series fiber laser cutting machine
L series laser cutting machine is a special fiber laser cutting machine for sheet metal. The application of metal laser cutting machine is very extensive, covering many industries, and it is one of the necessary equipment for many enterprises. Widely used in sheet metal processing, advertising sign production, high and low voltage electrical cabinet production, mechanical parts, kitchenware, automobiles, machinery, metal crafts, saw blades, electrical parts, glasses industry, springs, circuit boards, electric kettles, medical micro Electronics, hardware, knife measuring tools and other industries. Product Parameters

name	fiber laser cutting machine
Laser Type	fiber laser
Cutting Thickness	0-14mm carbon steel/0-6mm stainless steel
Cutting Area	3000MM*1500MM
Laser Source Brand	MAX/Raycus
Laser Head Brand	Raytools Cutting Head/WSX
Servo Motor Brand	FUJI
Guiderail Brand	HIWIN/LIKE
Control System Brand	JCZ Control System
Weight (KG)	3600KG
Key Selling Points	Competitive Price
Warranty	2years
Warranty of core components	2 years
Core Components	Motor
After-sales Service	Provided Engineers available to service machinery overseas
Keyword	new design 1000W fiber laser cutting machine
Laser power	1000w/1500w
Working area	1500mmX3000mm
Cutting materials	metal
Machine type	fiber laser metal sheet cutter machine
Laser source	MAX
Control system	Cypcut Control System
Accuracy of Positioning	±0.03mm/1000mm
Max Cutting Speed	100m/min

We provide three products with different working formats: 3000mm*1500mm (standard format), 4000mm*1500mm (medium format 0, 6000mm*1500mm (large format), in addition to this There are also some special configurations.
Product Description
Welded bed
1.Machine tool technology/
Sub-regional dust removal, better smoke exhaust effect.
2.Bed part: welding molding, after 600 degrees high temperature annealing to eliminate internal stress, after secondary vibration
aging treatment, eliminate excess stress, large gantry milling machine processing center, ensure the accuracy of the bed.
3.The bed uses a groove weld procedure to achieve constant strength welding. It has high tensile strength, sturdiness and durability, and the weld does not break; it can be used continuously for more than 20 years.

Aviation aluminum alloy beam
The aluminum beam is due to its excellent processing technology and the reason of the province. Make the gauge have the characteristics of "hard, light and fast", ensure the best dynamic performance in the cutting process, and move faster. The fastest cutting speed can reach 120m/min
Working table-guide rail, rack
HIWIN linear guides and APEX helical racks are used in conjunction with each other, with high guiding accuracy and smooth movement, which can improve the accuracy and stability of the equipment greatly .
Laser Cutting Head
the focal length adjustment range is large,From 1MM to 20mm
the accuracy is high. Deviation is within 0.01mm
Auto focus, always keep a distance of 0.02mm from the cutting surface.
the long service life, Ceramic ring 4000 hours, nozzle: 600 hours, collimation protection lens: 4000 hours
Sample&Industry
The laser cutting machine can cut most metal materials with a cutting thickness of up to 50mm.
Widely used in sheet metal processing, advertising sign production, high and low voltage electrical cabinet production, mechanical parts, kitchenware, automobiles, machinery, metal crafts, saw blades, electrical parts, glasses industry, springs, circuit boards, electric kettles, medical micro Electronics, hardware, knife measuring tools and other industries.
Packing & Delivery
Our company cooperates with more than 10 logistics companies, with transportation routes covering more than 150 countries and regions around the world. Provide strong guarantee for product transportation. Under normal circumstances, product delivery can be completed within 30-45 working days. Company information
LIKELASER Laser's production equipment mainly includes: laser cutting machine, ultra-high power laser cutting machine, integrated plate and tube laser cutting machine, automatic loading and unloading laser tube cutting machine, handheld laser welding machine and other equipment.
The annual output can reach more than 500 units, and the products are sold in 160 countries and regions. Has served 5,000+ corporate users. The equipment processes products with high precision, smooth cutting, fast speed and higher productivity. We have a complete after-sales service system, and we have the strength to promise to provide new and old customers with high-quality and cost-effective laser cutting machine equipment.
Certificate
FAQ
1: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.



Q2: Payment terms?
A:TT/West Union/Payple/LC/Cash and so on.


Q3: I don't know how to use after i receive Or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your
problems finished.We can also provide Door service if you need.



Q4:I don't know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.


Q5: If we need technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician's
business travelling ticket / room and board/ 100 USD per day.

Q6: Why the machine price not include fiber source and tube parts ? A:Different power different tube diameter price different ,
that's why we list the price not include fiber source and tube parts .

---
