Hydraulic Reel Paper Roll Stand Paper Box Hydraulic Mill Roll Stand Machine

Product Description

hydraulic mill roll stand Product Description

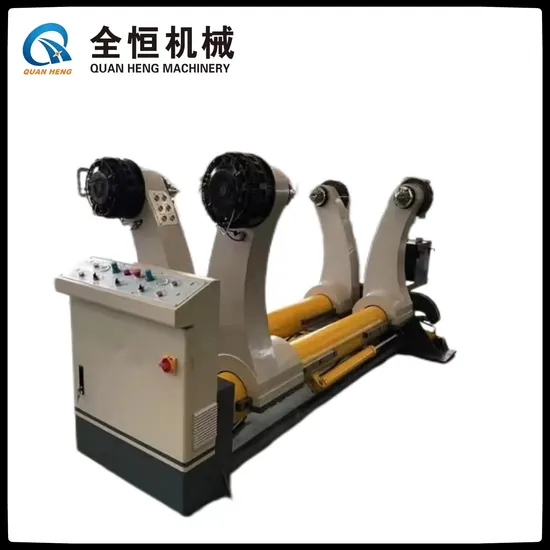

QHMRS-1600H Hydraulic Mill Roll Stand
Description:
This machine is used for supporting and outputting device.
Specification: Working width: 1400mm. Total power:4.0kw. Single side load-weight:2.0T Paper roller diameter: Ø1500MM, Min clamp paper diameter: Ø350MM. The lift-down arm adopted with cast iron curve structure, slinky, firm and steady. Lift-down, clamp-loosen and left-right move are control by Hydraulic cylinder. Tension control: pneumatic brake, with air-pressure valve, pressure regulating valve and manometer to show details when running. Install manual pulley: four wheels type, two railing for one mill roll stand. Whole machine adopt hydraulic control, easy to operate, low fault rate. Company Profile
Packaging & Shipping

---
