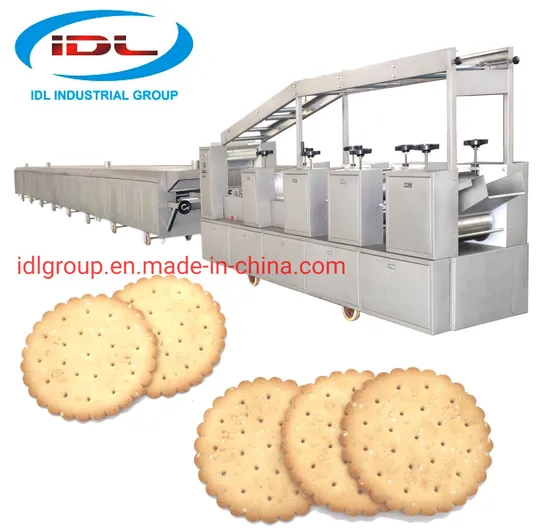

Automatic Biscuit Making Machine Industry/Biscuit Production Line with Small Scale

Product Description

Sandwich Pancake Making Machine /Dorayaki Pancake Production Line
Product Description
This line is an automatic one which is from mixing,extrusion,baking,flipping cake,filling cake,overlying to stamping.It is controlled by electricity,pneumatic,photoelectricity.This machine could make fine texture.soft delicate,moist dorayaki.You could use sweet bean paste,chocolate liquor and other filling as dorayaki filling.
The pancake sandwich produced by this line is with high quality and good taste, it is a very popular leisure food all over the world. This machine can produce various darayaki with different flavor through filling jam, cream or bean paste.
Flow chart:
Mixing---forming-----baking----filling-----automatic turning and sandwiching -----cooling and sterilization ----- shunt conveying-----packing

Technical Specifications
Pan Cake Main Machine
Model: DTS-01/02/03 Product diameter: 20-110mm Capacity: 2000-11000pcs/hr (12cakes/plate) Dimensions: 6180*1850*2100mm (L*W*H) 92 fried plates, surface polished and hard soldering treatment. The insulation cover is made of 10cm insulation cotton with excellent heat reservation performance, and can be opened for cleaning very easily. Equipped with automatic oil adding device. The upper heating device is adopted by imported infrared radiation, which can achieve uniform color on both sides of the cake crust. Brand of air cylinder is by AIRTAC. Human machine interface, controlled by PLC. Flour Slurry Mixing System
This mixing system includes 1 set of mixing tank with capacity of 200kgs, and 1 set of storage tank with capacity of 500kgs. The mixing tank is made of 304 stainless steel, motor power is 3KW, PLC control with DELTA frequency converter. Rotor pump power is 2.2KW, with DELTA frequency converter. All the pipes, storage tanks are made by 304 stainless steel. Cooling Line
Machine frame material is by 304 stainless steel. Brand of frequency converter is DELTA. Power: 3 sets of 1.5kw. . Food grade PU conveyor. Detailed Photos

After Sales Service
We can provide door to door services and turnkey projects for customers from all over the world.
Supply of spare parts for whole product life time. 7*24 hours online technical support. Free training for operation & maintenance of equipment. On site installation & commissioning. Welcome to visit us, IDL will be your ideal partner.

---
