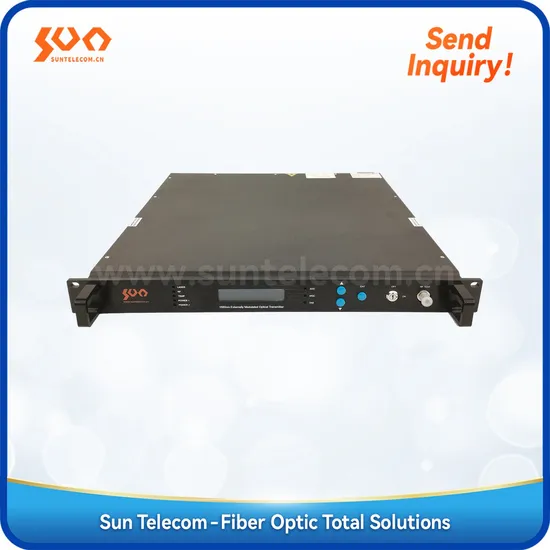

FTTH Internal/External Modulation CATV 1310/1550nm Fiber Optical Transmitter

US$200.00-3,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SUN-CATV-T15
Certification
CE, ISO, RoHS
Condition
New
Optic Power (MW )
2 ~ 16
Wavelength (Nm )
1310/1550
Optical Connector
Sc/APC, FC/APC (Optional)
Working Bandwidth (MHz)
45 ~ 1000
Power Supply (V)
AC: 90 ~ 265V DC: -48V (Optional)
Working Temperature (°c)
-20 ~ +85
Transport Package
Paper Box
Specification
483(L) x 380(W) x 44.5(H)
Trademark
SUN & logo
Origin
China
HS Code
8517622990
Production Capacity
1, 500 Sets/Mth

Product Description

Product Description SUN-CATV-T15 Optical Transmitter
Sun Telecom's SUN-CATV-T15 series of optical transmitter is a transmission equipment of CATV used in the FTTH project and it changes RF signal to optical signal that can transmit maximum 20km distance instead of 400m.
Features DFB lasers support maximum output power 16mW Perfect pre-distortion circuit AGC automatic gain control LED displays the working conditions and trouble alarm Different networks can be optimized by OMI adjustment (External Modulation Optical Transmitter has this function)
Applications FTTH Solutions Cable television distribution network EOC network
Specifications
Parameters Specification
Optic Power (mW ) 2 ~ 16
Wavelength (nm ) 1310/1550
Optical Connector FC/APC, SC/APC (optional)
Max. Transmission (km) 20
Working Bandwidth (MHz) 45 ~ 1000
CNR (dB) ≥ 51
CTB (dB) ≥ 65
CSO (dB) ≥ 60
RF Input Power (dBµV) AGC 80 ± 5
Band Unflatness (dB) ≤ 0.75
Power Loss (W) ≤ 30
Working Voltage (V) AC: 90 ~ 265V
DC: -48V (Optional)
Working Temperature (°C) -20 ~ +85
Dimensions (mm) 483(L) x 380(W) x 44.5(H)
Weight (kg) 5.0

Standard Accessories
No. Name Unit Quantity
1 Optical Transmitter set 1
2 Power line piece 1 or 2

Ordering Information
Example: SUN-CATV-T15D02-AC
Direct Modulation; Laser Wavelength: 1550nm; Optical Interface: SC/APC or FC/APC optional; One Output port, Output Power: ≥2mW; Transmission distance: < 20km; Single Power supply: 90~265V Related Products
