Two Rollers Rubber Mixing Mill Xk-450

US$4,200.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
rubber mixing mill xk-450
Application Area
Rubber
Certification
CE, ISO
Condition
New
Stirring Type
Spiral
Working
Diffusion Mixer
Certificate
CE
Identification
ISO9001: 2008
Rubber Mixing Mill
Open Mixing Mill
Rubber Mixing Mill Price
Open Rubber Mixing Machine
2 Roll Mill
Rubber Mixing Mill Price
Rubber Two Roll Mixer
Rubber 2 Roll Mill
22 Inch Rubber Mixing Mill
Rubber Mill
Open Mill Rubber Mixing Machine
Lab Rubber Two Roll Mill
Two Roll Mill Price
Rubber Mixing Mill for Rubber Sheeting
Open Mixing Mill for Rubber
Rubber Mixing Mill Xk-400
Mixer Type
Agitator
Layout Type
Horizontal
Mixing Drum Shape
Disc
Operating type
Continuous Operating
Transport Package
Wooden Case or According to Your Needs
Specification
Rubber & Plastic Product
Trademark
GUANGYUE
Origin
China(Mainland)
HS Code
847780000
Production Capacity
30sets/Month

Product Description

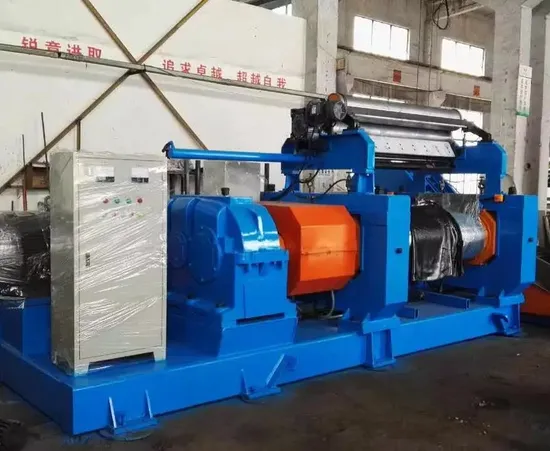

Two rollers rubber mixing mill xk-450


Structure features:
This machine is composed of rolls, bearings, frame, frame cap, transmission device, nip adjuster,
lubrication device, temperature regulator of rollers, emergency stop device and braking device, etc. The transmission is mainly conducted by the main motor, which drives reducer, and then the two coupling make the two rollers run. The speed of rollers is adjustable and can be directly showed on the control panel. Rollers are protected
by a safety shim, and rollers bearings are lubricated with manual-operation/power
driven through a grease pump.

Technical parameter:

Specification&type
Roll diameter
×Length(mm)
Linear speed of front
(m/min)
Roll friction ratio
Batch volume
(kg)
Motor power
(KW)
Max.nip adjusting
(mm)
Overall dimension
(mm)
Weight
(t)

X(S)K-160
160×320
8.95
1:1.35
1-2
5.5
4.5
1120×920×1295
1.1

X(S)K-200
200×500
19.50
1:1.05
8
11
5
2055×900×1165
2.5

X(S)K-250
250×620
15.20
1:1.10
10-15
18.5
8
3220×1500×1290
3.8

X(S)K-360
360×900
16.26
1:1.25
15-20
30
10
3920×1650×1725
5.53

X(S)K-400
400×1000
18.65
1:1.27
25-35
40
10
4380×1710×1880
8.14

X(S)K-450
450×1200
23.85
1:1.27
30-50
55
8
5050×1920×1870
13

X(S)K-560
560×1530
27.61
1:1.315
50-60
95
12
5830×2300×2000
22

X(S)K-550
550×1500
27.175
1:1.25
50-65
90(110)
15
6040×2100×1625
20

X(S)K-610
610×1830
28.7
1:1.25
90-120
160
15
6750×3040×1743
35

XKY-660
660×2130
32.45
1:1.09
165
185
15
7450×3660×2080
45

XKR-660
660×2130
28.60
1:1.24
165kg
250
15
7465×3660×2080
45.6

X(S)K-710
710×2200
31.90
1:1.09
350kg
280
15
7180×3805×3015
50

X(S)K-760
760×2540
33.23
1:1.09
350kg
315
15
7180×3805×3015
58

X(S)K-810
810×2540
31.90
1:1.09
350kg
355
15
7180×3805×3015
68
