16* 100Mbps Poe Ports, 2* Uplink 1000Mbps Port, 1* 1.25g SFP Optical Ports; Industrial-Grade DIN-Rail Optical Access Ethernet Network Switch

Product Description

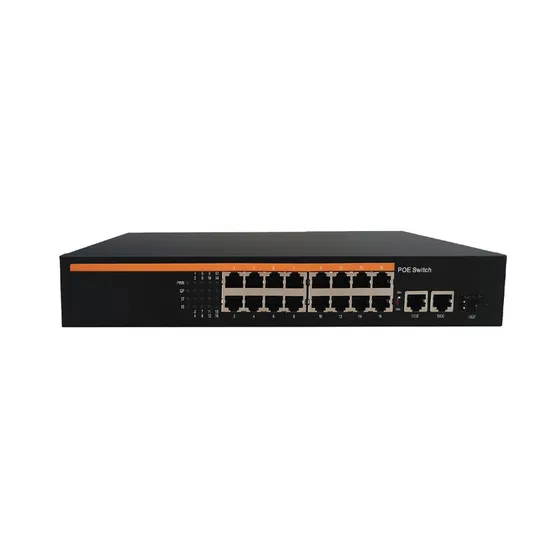

16-port 10/100M POE Switch
Product Description
The POE Powered Switch supports the IEEE802.3af/at power over Ethernet standard with a power distance of 100 meters and only powers 802.3af/at terminal devices, so there is no need to worry about compromising proprietary standards for POE or non-POE devices. In addition, the POE device stops supplying power when it is not connected. These devices, which are far from the power outlet, are suitable for hanging on the wall or on the ceiling, and the POE eliminates the need to connect the power outlets for these devices, making the connection to equipment that is difficult to connect to AC power more flexible and with minimal installation costs. This series POE Powered switches are ideal selection for small business networks that want to use the economic deployment of wireless access points (AP) and IP-based network surveillance cameras .
Product Features 16* 10/100Mbps downlink POE Ethernet Ports, 2* 10/100/1000Mbps uplink Ethernet Ports and 1* 1.1.25G SFP Ports; Supports port auto-flip (Auto MDI/ MDIX); Each of 16 ports all support IEEE802.3af/at; Maximum power per port: 30W; Maximum POE power: 300W; Adopts store-and-forward architecture; Built-in 1U rack power supply series, easy installation. Support Vlan.(It divides the physical ports on the VLAN switch and the PVC (permanent virtual circuit) ports inside the VLAN switch into several groups. Each group constitutes a virtual network, which is equivalent to an independent VLAN switch.) Specification

Item		Description
Power	Power Adapter Voltage	AC100-240V
	Consumption	200W / 300W
Network Connector	Network Port	1~16 Port : 10/100Mbps POE Ethernet Port
		Uplink Port : 10/100/1000Mbps Ethernet Port Uplink Port : 1.25G SFP Port
	Transmission Distance	1~16 Port : 0~250m
		Uplink Port : 0~100m SFP: depends on the optical module
	Transmission Medium	Cat5/5e/6 standard network cable
Network Switch	Network Standard	IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.1D
	Switching Capacity	9.2Gbps
	Packet Forwarding Rate	8.3328Mpps
	MAC Table	4K
Power Over Ethernet	POE Standard	IEEE 802.3af/at
	POE Power Supply Type	End-Span(1/2+;3/6-)
	POE Power Consumption	af≤15.4W , at≤30W , (every port)
LED Status Indicator	POE Ethernet LED Indicator	Power: 1 red light indicates that the power normal work;
		POE: 16 yellow lights indicate that the POE is power on;
		Ethernet: 18 green lights indicate that the Ethernet link and act;
Environmental	Working temperature	0ºC~55ºC
	Relative Humidity	20~95% non-condensing
	Storage temperature	-20ºC~70ºC
Mechanical	Dimension (L×W×H)	310*182*45mm
	Color	black
	Weight	3100g
Stability	MTBF	>30000h

Instruction: 1.Front board have 29 ports, Provide 16 * 10/100Mbps downlink POE Ethernet Ports, 2 * 10/100/1000Mbps uplink Ethernet Ports and 1 *1000Mbps uplink SFP Ports.
2.LED Indicator State: 3.Power: 1 red light indicates that the power normal work;
4.POE: 16 yellow light indicates that the POE is power on;
5.Ethernet: 18 green light indicates that the Ethernet link and act;
Installation Step:
Please check below device and accessories before installation, if there are missing, please contact with your supplier. POE Switch 1 PCS Power Adapter/Power Adapter Cable 1 PCS User Manual 1 PCS
Please follow the following steps
Please turn off the signal source and the device's power before installing, installation with power on may damage the device;
Use the network cables to connect the IP cameras with Ethernet switch's every POE port;
Use network cable to connect Ethernet switch's UPLINK port with NVR or Other Device;
Connect Ethernet switch with power adapter;
Check if the installation is correct and device is good, make sure all the connection is reliable and power for the system;
Make sure every network device has power supply and work normally.
Problem Examination
Please remove the problem according to the following steps
Please confirm if the device installation is correct;
Please confirm if the RJ45 reach the standard of EIA/TIA568A OR 568B;
The maximum transmission distance depends on the signal source and cable quality, please do not over the maximum transmission distance;
Please replace a normal device with a failure one to check if the device is broken;
If the problem still exist , please contact the factory.
