Product Details
Product Description
Product Description
BOLI Steel grating typically consists of parallel and perpendicular steel bars, with the perpendicular bars welded or locked into place by various methods such as welding, riveting, or swaging. The design of the grating allows for the passage of air, light, and liquids while providing structural support.
Steel grating is extensively used for industrial flooring in factories, warehouses, manufacturing facilities, and industrial plants. Its robust construction provides a stable and safe walking surface for workers while allowing ventilation, drainage, and the passage of light and air.
Product Parameters
Production name
| BOLI Steel grating
|
Material
| Carbon steel, Stainless steel, Aluminum
|
Surface treatment
| Hot dipped galvanized, Spray-painting, Polished and powder coated
|
Bearing Bar type
| Flat bar, Serrated bar, I-bar, inserting steel grating etc
|
Beaing bar size
| 20*3mm, 25*3mm, 30*3mm, 32*3mm, 40*3mm, 50*3mm, 60*3mm, 70*3mm20*4mm, 25*4mm, 30*4mm, 32*4mm, 40*4mm, 50*4mm, 60*4mm, 70*4mm
20*5mm, 25*5mm, 30*5mm, 32*5mm, 40*5mm, 50*5mm, 60*5mm, 70*5mm
|
Mesh size
| 30*100mm, 40*100mm, 50*100mm, 30*50mm, 40*50mm, 50*50mm,
30*30mm, 34*38mm
|
Use to
| flooring, catwalk, decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.
|
|
|
Detailed Photos

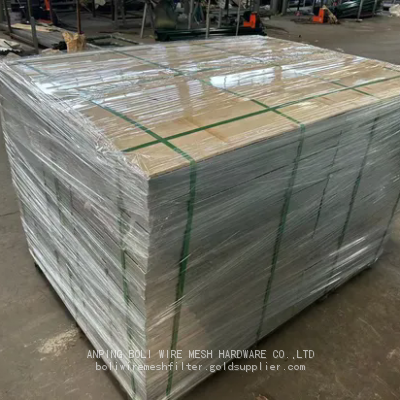

Packaging & Shipping
Company Profile
BOLI WIRE MESH As a manufacture, Cowan specializes in producing different kinds of wire mesh fence & Livestock fence & Wire Mesh Cages. Since already has 12 years of experience, now we can finish Cowan is well-equipped to complete International Government Big Tenders, even we have 4-years' experience to cooperate with the Fortune 500 Companies. Cowan Wire mesh fence like chain link fence, 358 anti-climb fence, 3D welded mesh fence belongs to the top selling products; Cowan Livestock fence like cattle yards, cattle crush, corral panels,sheep panels and field fence (Hinge type & Fixed knot type & Square deal type) are very famous; Cowan Wire mesh cages like Wire Mesh Container, Forklift Safety Cages, Dog kennels and Chicken cages selling very well. At Cowan Responsibility, Diligence, Wisdom, Humility, Innovation, Excellence, Introspection have always been our standards and guidelines for doing things, and we will do better and better.
steel grating specification- galvanized road drainage grates
panel size available(black grating): 1000x5800mm or 1000x6000mm
| Bearing bar pitch | Cross bar pitch | load steel size ( Width ×Thickness) |
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 |
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing bar pitch | Cross bar pitch | load steel size (Width ×Thickness) |
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 |
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
3. Anping metal walking grates introduction-- galvanized road drainage grates
| Bearing bar type | Flat bar | I bar | Serrated bar |
|
| Cross bar type | Twisted bar | Round bar | flat bar |
|
| Production process | welded | Pressure locked |
|
|
| Surface treatment | Self-colour | Galvanized | painted |
|
| application | Platform | walkway&floor | Trench cover | Steel stair treads |
| Suspended ceiling | Barrier fence |
|
|
bearing bar types:
surface treatment: mill finish,hot dip galvanized,painted
steel grating standard-- galvanized road drainage grates
| Steel Grating Standard |
| Steel Grating Standard | Steel Standard | Galvanizing Standard |
| China Standard | YB/T 4001.1-2007 | GB700-88 | GB/T13912-2002 |
| USA Standard | ANSI/NAAMM (MBG531) | ASTM (A36) | ASTM (A123) |
| U.K. Standard | BS4592 | BS4360 (43A) | BS729 |
| Australia Standard | AS1657 | AS3679 | AS1650 |
| Deutsche Standard | DIN24537 | DIN17100-80 | DIN50976
|
Product Application
Company Profile
ANPING BOLI WIRE MESH HARDWARE CO.,LTD
ANPING BOLI WIRE MESH HARDWARE CO.,LTD was an old established factory which built in the year of 1984. It mainly in the line of producing and selling wire mesh products. Our company has advanced equipment, excellent technology, strict inspection for the wire mesh products and can provide outstanding quality and reasonable price, which help us to win the trust of our customers. Our products have been sold to five Continents, over 30 countries, including USA, Canada, Australia, Italy, UK, France, etc. We sincerely hope to establish good and long business relationship with all friends. May our cooperation bring you happiness and benefit.ANPING BOLI WIRE MESH HARDWARE CO.,LTDspecialized in products of stainless steel wire&wire mesh,Stainless steel strainer,strainer basket,stainless steel filter,SuctionStrainer,Wire Cloth & Wire Mesh Discs,Stainless Steel WovenWire Cloth,Extruder Screens Filter, Welded Packs,RimedPacks,Cylinders Filters,Sintered Filters Elements,CandleFilters, and Architectural Mesh, Expanded Metal, PerforatedMetal, We offer a variety of wire mesh products inWoven/Welded/Crimped and Dutch form, Expanded,
