1ly (sx) -325 Reversible Disc Plough/Disk Plough/Plough

Product Description

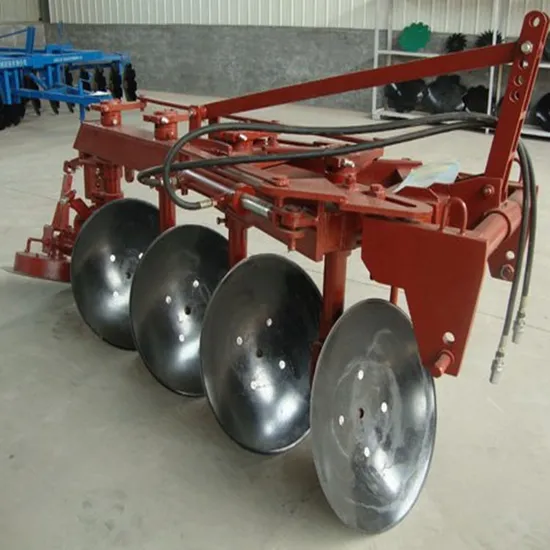

1LY(sx)-325 Reversible Disc Plough
This 1LY(sx)-325 reversible disc plough is constructed to be level swing. It's suitable for plowing up the dry cultivated or fallow land, especially on high yield's manure and virgin land. The discs are rotating forward during work, so the friction from the soil is small and the discs are not easy to be wrapped and blocked up by grasses. With the long edge and the good wearing resistance of the discs,it's easy to plough into the soil and the land surface is smooth after plowing. The productivity is high and the oil consumption is low. The disc plough has noticeable advantages is high working on the terraced field and small block field.
The reversible disc plough is lower cast and higher volume output. The cost for cultivation is paid more and more attention by the customers and to meet this requirement. Our company developed the series of reversal plough. The plough camber is deeply prefer by the customer all over the country in recent years particularly. The working speed is 8-10km/h.
The reversible plough can be mounted to 15-120 HP tractors with 2 ways of reverse-mechanical (J), and hydraulic (Y). Hydraulic reversed plough can be adjusted for the different width and different tractors, the. Hydraulic system is automatically and the operation is smooth without any troubles.

Model	Unit	1LY(SX)-325	1LY(SX)-425	1LY(SX)-525	1LY(SX)-625
Working width	m	0.75	1.00	1.25	1.50
Working depth	cm	25	25	25	30
Qty. of Disc	piece	3	4	5	6
Size Of Disc	mm	660*6
Weight	kg	560	660	820	1020
Linkage	Three point-mounted
Matched Power	hp	50-65	65-90	90-100	100-120

Particulars: The plough body of the reversible disc plough assemblies are the main working parts of the disc plough. The plough discs are made of 65Mn steel with heat treatment, so the discs have a good wearing resistance.
The disc plough will produce a great side direction force when it is working. The plate-type rear wheel of the plough may effectively balance the side direction force and make it work stable. If you need more information about the 1LY(sx)-325 Reversible Disc Plough,please don't hesitate to contact me!

---
