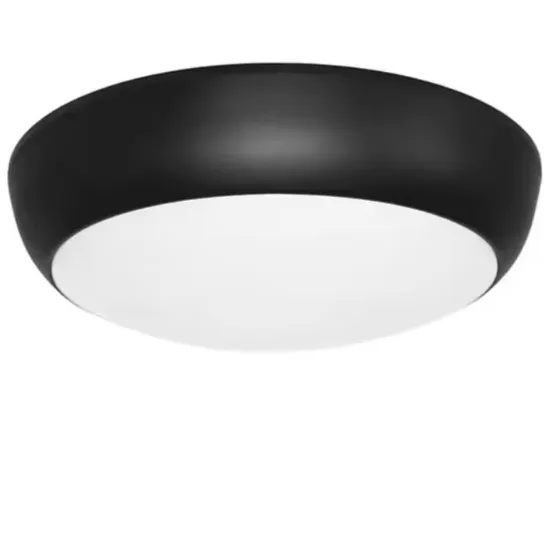

Modern Wall Round LED Bulkhead 15W Waterproof Residential Light High Quality 5 Year Warranty

Product Description

Modern Wall Round LED Bulkhead 15W Waterproof Residential light High Quality 5 Year Warranty
Features
°Energy efficient LED
°IP66 weatherproof rating with insect resistant seal
°IK10 vandal proof rating
°Supplied with eyelid trim option
°Tri-CCT selectable
MECHANICAL
°Adjustability Fixed
°BodyMaterial Polycarbonate
°Diffuser Material Polycarbonate
°Fitting Colour Black
°IK Rating IK10
°Installation Type Wall or Ceiling
°IP Rating IP66
ELECTRICAL
°Electrical Rating Class II
°Input Current 0.07 A
°Input Frequency 50 Hz
°Input voltage 230Vac
°Switch Type Inline
°System Max Wattage 12 W 15W 22W
°Working Temp Range -20 to 45 °C
LAMP
°CCT Configuration TRI-CCT
°CRI >80
°System Efficiency 100 lm/W
LED LIFETIME
°LED Lifetime >54000 hrs
COLOUR TEMPERATURE
°Warm White (3000K K) 1125 lm
°Cool White (4000K K) 1170 lm
°DayLight (5700K K) 1150 lm
°Warm White (3000K (Eyelid) K) 670 lm
°Cool White (4000K (Eyelid) K) 700 lm
°DayLight (5700K (Eyelid) K) 685 lm
Lighting detailes picetures:
1)Full and half full lighting

2) Front view:
3)Bright face performance

4)White and black colours
5)Fixing on the wall
6)Inside of light:driver and LED board
7)Inside of light:
8)Inside of light:hangling and clip

9)Light back and inside

9)Ture light photoes:

10)Lighting using

Detailes of lighting:
1. Lighting body: PC or ABS material body with high impact resistance, non-deformable structure for installations in environments with vibration.
2. Lighting cover: opal PC difusser
3. LED board: White aluminum base, 0.45mm thickness.
4. Applications: Indoor & outdoor areas with high IP requirement, food industry chemical plants, heavy mining industries environments with the presence of cuting oil & other aggressive substances, oil industries, offshore industry, petrochemical industries, swimming pool areas, dusty humid and corrosive environments, washing houses, breweries, under canopy areas, pharmaceutical factories, loading bays, food industries, packing areas, garages, cellars and industrial complex, ware house, under-bridge, tunnel, ship, bathe center, packing lot, railway platforms, lobbies, refrigeratory and city environment luminance field ect.
5. Operating voltage: Input 220V ~ 240V, 50Hz ~ 60Hz. Output 12V-24V 50Hz ~ 60Hz
6. Type of lamps: LED SMD2835
7. Wattage: 12w 18w 24w
8. Operating temperature: -20C ~ 45C
9. IP rating: IP66, outstanding stability of water tight gasket, waterproof, explosion proof, dustproof.
10. Electrical equipment: High quality LED driver and SMD2835 Chips
11.Light could be with 3CCT sensor and emergency kitting inside
12. Certificate: CE, CB, RoHS, SAA
Power specification:

Item No.	Power	Lumens	PF	IP Grade	Sensor	IK	3CCT	CRI	Warranty	Light size
SLCLC-12	12W	1320LM	>0.95	IP66	Microwave sensor	IK10	3000K/4000K/5700K	>80	3 years	Φ260*108cm
SLCLC-18	18W	1980LM	>0.95	IP66	Microwave sensor	IK10	3000K/4000K/5700K	>80	3 years	Φ320*108cm
SLCLC-24	24W	2640LM	>0.95	IP66	Microwave sensor	IK10	3000K/4000K/5700K	>80	3 years	Φ360*108cm

---
