Fender Part Cone Marine Dock Fenders

Product Description

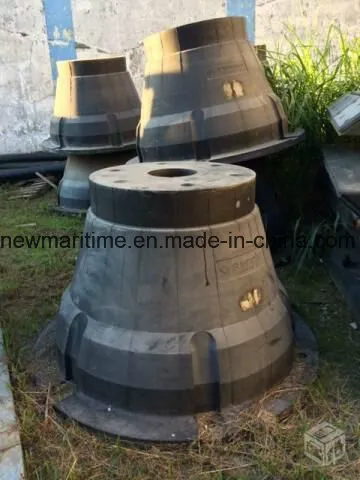

Cone Rubber Fender for marine dock and boat
1. Rubber Fender Type; Super Cell Rubber Fender , Cone Rubebr Fender, Super Arch Rubber Fender, Cylindrial Rubber Fender, Tug boat Rubebr Fender, Unit Element Rubber Fender, JD type RubberFender, JDO Rubber Fender, Square fender( SC rubber fender, SD rubber fender), Rubber Ladder, Floating Fender, Pneumatic Fender, JDZ Roller Fender, etc
2. Size: According to customer's drawings
3. Standard: Drawing and HG/T2866-2003 Standars
4. Certification:BV, CCS, ISO,etc.
5.Application:workboat, fishing boats, pilot boats,loading bays, dock, car parks trucks,etc.
1. In the case of oblique berthing (less than an angle of 10°), the performance will not be reduced, which is superior to cell fender.
2. The frontal frame (steel frame) is installed in front of cone fenders, which can reduce the surface pressure against vessel hull. The surface pressure can be limited below 25t/m2, which is suitable to large vessel especially.
3. The super high density polyethylene pads are adhered to the frontal frame, which can reduce the friction factor between hull and cone fender to below 0.2, and can reduce the shear force (horizontal force) exerted on fenders when vessel berthing, which can prolong the service life of fenders.
4. The frontal frame adopts water-tight structure with high strength and better anti-rust performance.
5. The cone fender body is rarely damaged or impaired because it never contacts the hull directly.

Size:

Types	H	h	Dia.1	Dia.2	Dia.3	Dia. 4	n	D1	Md	a	b	s
Cone 500	500	25	425	325	675	750	4	30	M24	4	75~95	36
Cone 600	600	27	510	390	810	900	6	30	M24	5	90~110	40
Cone 700	700	32	595	455	945	1050	6	38	M30	6	105~125	40
Cone 800	800	36	680	520	1080	1200	6	44	M36	7	120~140	52
Cone 900	900	41	765	585	1215	1350	6	44	M36	8	135~155	55
Cone 1000	1000	45	850	650	1350	1500	6	56	M42	8	150~170	65
Cone 1100	1100	50	935	715	1485	1650	6	50	M42	8	165~185	65
Cone 1150	1150	52	998	750	1550	1725	6	56	M42	10	170~195	70
Cone 1200	1200	54	1020	780	1620	1800	8	50	M42	10	180~210	75
Cone 1300	1300	59	1105	845	1755	1950	8	60	M48	11	195~225	75
Cone 1400	1400	66	1190	930	1890	2100	8	60	M48	12	210~235	70~80
Cone 1600	1600	72	1360	1060	2160	2400	8	70	M48	14	280~270	70~80
Cone 1800	1800	78	1530	1190	2430	2700	10	76	M56	16	270~290	75~90

Accessories:
Front Pad and Face Pad, U-Ring and Chain, Steel Mount and Connector
Pre-built Parts:Bolt, Waeher, Pre-built-in nut, Foot rod, Foot Board
We are proffesional in marine products, and all products can be customized!
Our advantages
1. Advanced production equipment and experienced manufacturing teams
2. Completed in-house test equipment and strict quality control system
3. Reliable product quality and competitive price
4. Complete customer service and perfect after-sale service

---
