Small Flow Homogenizer Vacuum Homogenizer Milk Homogenizer

Product Description

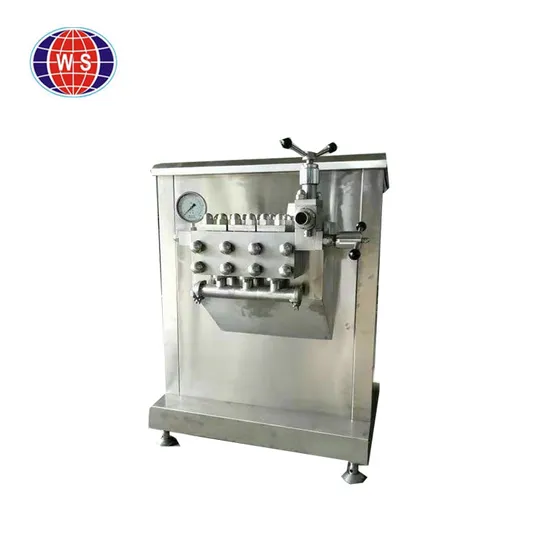

High Pressure HomogenizerIt is a special equipment in liquid materal homogenization,lessening and high pressure transportation,which are applied widely for food, dairy, beverage, medicine, fine chemical and bioe ngineering technology,etc.

Applicable products
The equipment is provided with touch screeen and PLC programmable logic controller, which can dynamically reflect all parameters such as temperature and flow rate of products with simple and flexible operateion

Model (JJ)	Flow (L/h)	Maximum pressure (Mpa)	Rated pressure (Mpa )	Motor power (KW)	Size (mm)
30L/60	30	60	48	1.1	730×510×500
50l/40	50	40	32	1.1	730×510×500
50l/25	50	25	20	1.1	730×510×500
30L/100	30	100	80	1.5	860×560×560
100L/100	100	100	80	3	700×640×980
100L/60	100	60	48	3	700×640×980
30L/120	30	120	96	2.2	950×580×810
0.5/100	500	100	80	18.5	1200×1060×1600
1/100	1000	100	80	30	1410×1120×1500
100l/150	100	150	120	5.5	900×800×1260
300L/150	300	150	120	18.5	1250×1030×1580
200L/25	200	25	20	3	700×640×980
300L/25	300	25	20	4	700×640×980
0.5/25	500	25	20	5.5	1010×645×990
1/25	1000	25	20	7.5	1010×645×990
1.5/25	1500	25	20	11	1010×645×990
2/25	2000	25	20	15	1150×860×1100
3/25	3000	25	20	22	1350×940×1240
4/25	4000	25	20	30	1350×940×1240
5/25	5000	25	20	37	1410×1120×1470
6/25	6000	25	20	45	2350×1140×1085
10/25	10000	25	20	75	2700×1480×1240
0.5/40	500	40	32	7.5	1010×645×990
1/40	1000	40	32	15	1150×860×1100
2/40	2000	40	32	30	1350×940×1240
3/40	3000	40	32	37	1410×1120×1470
4/40	4000	40	32	45	2350×1140×1085
5/40	5000	40	32	55	2350×1140×1085
6/40	6000	40	32	75	2700×1480×1240
8/40	8000	40	32	90	2700×1480×1240
10/40	10000	40	32	110	3320×1720×1390
0.5/60	500	60	48	11	1150×860×1100
1/60	1000	60	48	22	1350×940×1240
2/60	2000	60	48	37	1410×1120×1470
3/60	3000	60	48	55	2350×1140×1085
5/60	5000	60	48	90	2700×1480×1240
6/60	6000	60	48	110	2700×1480×1240
8/60	8000	60	48	132	3320×1720×1390
10/60	10000	60	48	160	3320×1720×1390

---
