High Precision Woodworking Heavy Duty Double Side Planer Thicknesser

Product Description

Technical Paremeters

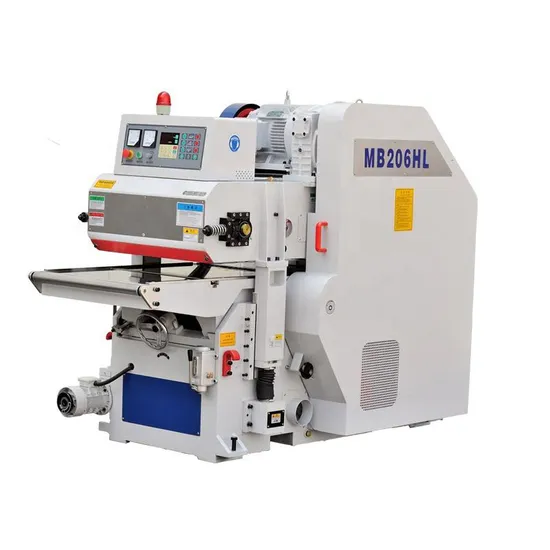

MB206HL HEAVY DUTY DOUBLED SIDE PLANER THICKNESSER

Model		MB206HL
Max. Width of plane work piece		630mm
Max. Thickness of plane work piece		150mm
Min. Length of plane work piece		260mm
Min. Width of plane work piece		10mm
Max. Quantity of plane work piece per time	Upper cutting tool shaft	7mm
	Lower cutting tool shaft	5mm
Material conveyance speed (stepless speed changing)		4-16m/min
Upper and lower rotate speed		4300r/min
The cutting diameter of cutting tool shaft		101mm
Cutting tool shaft speed		22m/s
The speed of press planer ascent and descent		100mm/min
Motor power	The upper, lower cutting tool shaft motor	11/7.5kw
	Material conveyance motor	3kw
	Ascent and descent motor	0.37kw
Planer dimension		2250*1000*1700mm
Weight		2600kg

Product Details

Short material processing:
Equipped with a short material processing device to ensure smooth short material processing and improve wood utilization.

Arbor/tool shaft:
The lower tool shaft pulls out the quick tool change mechanism, which is convenient, fast and safe for tool replacement and correction.
Processing table:
The processing table is treated with high-hard mirror chrome plating, the table is smooth and flat, durable and wear-resistant, and the hooks at both ends can be attached to the conveying platform.
Feeding:
The feeding mechanism can be fine-tuned up and down, and the lifting range can reach 10mm, so that the machining accuracy is greatly improved, and the feeding is strong and powerful.

Frequency conversion speed regulation:
The brand frequency converter is selected for variable frequency speed regulation, and the feeding speed can be selected according to the actual needs of processing wood.
Application

Company Profile

Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
We are committed to providing one-stop service for factory production. Replying on the favorable geographical advantages of Qingdao Industrial Park. We have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as: polishing machines, panel machine, press machine etc, which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.
About the payment,I should do the PI for you first,and it has the payment account number of our company, you need to pay a 30% deposit first,when we get the deposit,we will arrange the production of the machine,it takes 20 days. After the production is completed,I will send the pictures of the machine to you,next,you should pay the final payment,and we will arrange the delivery for you. Certifications
Exhibitions

Our customer feedback

FAQ
FAQ
Q1: ARE YOU A MANUFACTURER?
A1:Yes.We have 20 years manufacture and export exprience.
Q2: ABOUT THE MOQ
A2: 1 set, and we are OEM,I will give you the competitive price better than market.
Q3: MAY I BUY A SAMPLE?
A3: Of course ,sample order is welcome.
Q4: HOW CAN I PLACE A ORDER?
A4: Just give me your nice inquiry,l will do my best to assist you.
Q5: IF IWANT CHEAPER QUALITY, CAN YOU PRODUCE?
A5.Yes, just send us your quality details, such as the material, what cheaper partsinstead etc, we will do that as your request and calculate the price.
Q6: IF IORDER BIG QUANTITY, WHAT'S THE GOOD PRICE?
A6: Please send the details enquiry to us, such as the ltem Number, Quantity for eachitem, Quality request, Logo, Payment Terms, Transport method, Discharge place etc.We will make the accurate quotation to you as soon as possible.

---
