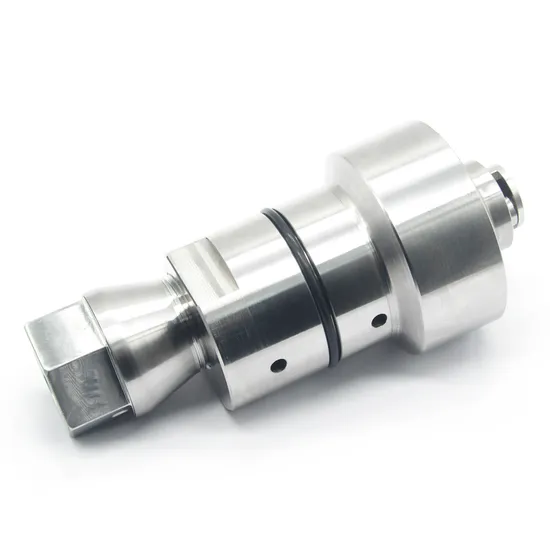

Waterje Nozzles and another spare parts different waterjet cutting machine spare parts
Detail description
| Name | Code | Name | Code |
| 020070-1 | SHORT BLOCK INTENSIFIER ASSEMBLY, 87K | 010253-1 | HIGH PRESSURE CERAMIC PLUNGER 60K, 75K, 87K |
| 014623-1 | LONG BLOCK INTENSIFIER ASSEMBLY, 87K | 040015-1 | SEAL CARTRIDGE 87K-2.0 INTENS |
019579-1
019579-2 | 94K Hyperjet Metric Accumulator 1.0L | 053334-1 |
| 045160-1 | P4 Cutting Head Assembly, XD | 020595-1 | FILLER TUBE ASSY, 75K - 87K INT CART |
| 019309-1 | BLEED-DOWN VALVE ASSEMBLY | 020071-1 , 014495-1 | CHECK VALVE ASSY 75K - 87K INT PH2; |
| 015084-1 | BLEED-DOWN VALVE REPAIR KIT | 020077-1 | BODY, CHECK VALVE 75K - 87K INT |
| 011742-1 | BLEED-DOWN VALVE BODY; | 012035-1 | MAINT KIT, 75K - 87K CHECK VALVE; |
| B-8427-1 | 60K Bleed-Down Valve Actuator Housing | 014884-1 | INLET CHECK VALVE REPAIR KIT, 87K |
| B-5975-1 | Bleed Down Valve Output Adaptor | 014885-1 | REPAIR KIT, 75K - 87K OUTLET CHECK VALVE REPAIR KIT |
| 019975-1 , 011290-1 | 87K LOW PRESSURE CYLINDER | 042101-1 | OUTLET BODY ADAPTER 87K |
| 011492-1 , 020079-1 | PISTON ASSY 87K ESL | 014388-1 | Check valve seat |
| 020080-1 , 011304-1 | 87k intensifier low pressure piston/bisuit plunger | 015384-1 | Inlet poppet |
| 007029-1 | Plunger Retainer | 010564-1 | Inlet check valve support |
| A-0270-250 | Snap Ring, Piston | 011309-1 | Outlet poppet |
| 019684-1 ,011301-1 , 014819-1 , 020072-1 | 87k intensifer end bellassembly left hand | 060652-1 , 042102-1 | Check Valve Outlet Seat, |
| 019683-1 , 011300-1 , 014818-1 , 020074-1 | 87k intensifer end bellassembly light hand | 013403-1 | Hydraulic Manifold, Side Mount w/Relief Valve |
| 014817-1 | END CAP ASSY, INTENS 75K - 87K | A-18862 | Electrical Shift and Pilot Assembly, 24v (Rexroth) |
| 013157-1 | SPARES KIT;LP SEAL;INTN; 75K - 87 K | C-2743-1 |
| 014589-1 | TIE ROD END CAP 75K - 87K-2.0 INT | A-10544 | Pilot Valve, 24V Electrical |
| 014840-1 | LP Cylinder Tie Rod Nut | A-5480 | Hydraulic Filter |
| 011291-1 , 020078-1 | 87K LP CYLINDER TIE ROD | A-11367 | FILTER ELEMENT, 6 MICRON, 13" LONG FLOW A-11367 |
| 014597-1 | 87K INTENSIFIER TIE ROD HEX NUT | A-1449 | 10" WATER FILTER CARTRIDGE, .45 MICRON; |
| 010276-1 | Oil Seal Spacer OEM | A-1555 | 10" WATER FILTER CARTRIDGE, 1.0 MICRON |
| C-2728-1 | snap ring for Oil Seal | 014922-1 | SWIVEL ASSY, 1 / 4 D-ACT 90 DEG 75K - 87K |
| B-1040-2 | Bushing Guide for End Bell - Plunger Bearing | 015093-1 | REBUILD KIT, SWIVEL, 1 / 4, 75K - 87K |
| A-11275 | Spring Rod Seal | 049358-1 | 1/4" 10 Degree Single Axis Swivel Assemblyy |
| B-8345-2 | 60k on/off valve II VALVE ASSEMBLY | 014918-1 | WaterJet 87K Swivel Body |
| 011275-1 | Sensor assy, prox, e-shift, 24V | 048127-1 | water jet parts 87ksi swivel shaf |
| B-8346-1 | Actuator assembly e-shift | 009930-1 | Metering Valve Assembly |
| B-1702-1 | Shifting Pin, Electrical Shift | 009927-1 | Metering Valve Housing Assembly |
| 020592-1 | HP CYLINDER, 75K - 87K INT CARTRIDGE; | 057205-1 | Flow Type, Mini Hopper Abrasive Metering Assembly |
| 009931-1/2/3/4/5/6/7/8/9/…/18 | METERING DISC | 009929-1 | Paser 3 Diverter |
| | | 010295-1 | SPARES KIT;METERING DISK;ABR XFER |
Guangzhou perfect machinery tech co., ltd ,it is one professional waterjet cutting machine and spare parts supplier, Our company is in a famous Career Technical College in Guangzhou. Our College have very advanced CNC equipments, I think that is a world-class processing equipment, we do for some America water jet factories production of high pressure parts for many years, and more Chinese large water jet plants producing intensifier . i am sorry For i cannot give you the names of these factories, but I promise to give you the quality of the United states.
Normal standard waterjet spare parts like 60k&90k water jet intensifier and all the kinds of water jet cutting heads, and the water on/off valve, water jet orifice ruby and abrasive nozzle, and high pressure hp cylinder, check valve body, waterjet HP seals, oil seal, ceramic plunger, valve seat, all the normal water spare parts we have high quality and good price.
We have water jet hgh pressure intensifier pump quality same like Flow waterjet , KMT waterjet ,Dardi waterjet ,and we have good water jet working table.
Any spare parts of water jet cutting machine, Welcome to Guangzhou meet me and contact myphone
Delivery Details : 3-7 days after order of waterjet parts packing
Waterjet spare parts : soft package inside,carton package outside.
The package ways aslo can according to customer requirement.
