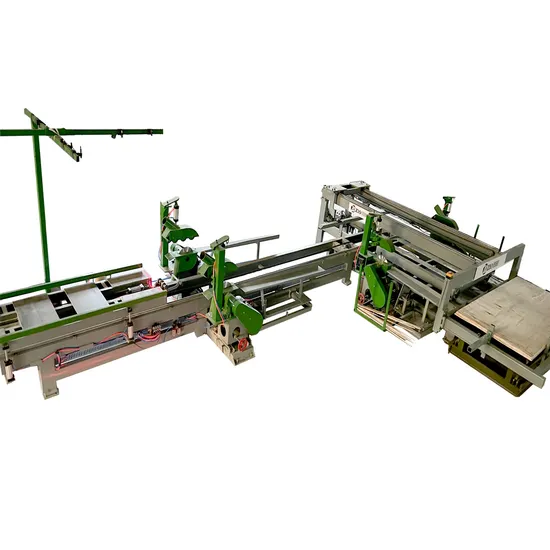

Dd Saw Wood Edge Trimming Saw Machine for Plywood Cutting Trimmer Machinery

Product Description

Product Parameters
Our company is one of the most professional wood working machinery suppliers in China, was founded in 2011. During these years of development, we have been established our own system of manufacturing, selling and after-sale-service.
Our edge cutting saw machine adopts one-click start, simple operation, greatly improve production efficiency and save labor costs. Under PLC control, the failure rate is very low, the machine runs smoothly, the error is very small, and the board is smooth after sawing. With automatic loading system, greatly saving labor costs.

Specification	Parameter
Material for main frame	80X160MM
working thickness	3-60mm
Saw motor power	11kw
Speed	10-30m/min
Edge size	the length saw 915-1220mm
	the width saw 1830-2440mm
Running motor	1.5KW
Lifting platform power	3kw
Saw blade size	180mm,305mm
Weight	5000kg
Overall dimension	9500X4000X1400MM

Detailed Photos
Automatically align palletizing
Shear rack type lifting platform is more load-bearing
Infrared monitoring board positioning to avoid board waste
The use of linear guide rails makes the operation more accurate and the edge of the boards smoother after sawing

Certifications
Packaging & Shipping

---
