Polyester Filter Press Fabrics for Chamber Filter Press

Product Description

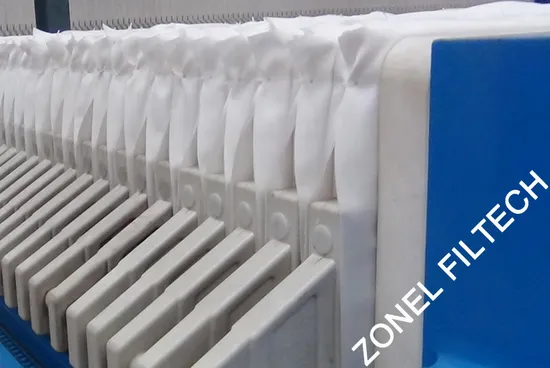

polyester woven filter fabric for filter presses
General introduction: The polyester woven filter fabric from Zonel Filtech adopt the first-grade polyester raw materials include polyester spun yarn, polyester multi-filament, polyester mono-filament and their blended materials, with the various pattern to meet the special filtration performance.
The polyester woven filter fabrics can be offered by filter cloth rolls, or readymade filter fabrics, or seamless filter sleeves, which subject to the clients' requirements.
Properties:
good for acid resistance, good for oxidant resistance, high tensile strength, excellent abrasion resistant, food grade.
Applications:
for Liquid-solid separation. Zonel also developed some seamless filter sleeves for dust collection. Mainly used in food and beverage industry, pharmaceutical industry, non-ferrous metallurgy, chemical plant, building section and mining industry, etc, for the equipment of filter presses, centrifuge filters, vacuum filters, pan filter and disc filter, belt filters, etc.
We can customize the filter cloth according to the given material.
The typical parameters:

Series	Modelnumber	Density (warp/weft)(counts/10cm)	Weight (g/sq.m)	Burstingstrength (warp/weft)(N/50mm)	Airpermeability (L/sqm.S) @200pa	Construction (T=twill; S=satin; P=plain)(O=others)
Polyester staple fiber filter cloth series	740	307/206	330	2800/1700	120	S
	F903	286/202	370	2450/1800	130	S (anti-static)
	208	260/276	400	2400/1900	220	T + terry finish treatment
	3927	156/106	535	3900/2600	18	P
	822	260/102	940	5000/3200	22	T
Polyester filament filter cloth series	240	228/184	220	2350/920	80	P
	621A	193/130	340	2900/1950	55	P
	5124	200/94	510	> 5000/2600	45	T
	3010	150/80	620	4800/4200	45	P
	F8432	331/126	760	> 5000/5000	40~50	T (anti-static)
Polyester monofilament filter cloth series	7033	708/260	330	2670/1300	900	S
	7322	515/200	390	3000/1400	1100	S
	3415	330/165	490	2800/1500	280	T
	2227	220/263	590	> 5000/5000	145	O
	5953	590/531	665	>5000/5000	45	O

---
