Ini 50kn 5 Ton Hydraulic Recovery Winch Truck Winch

Product Description

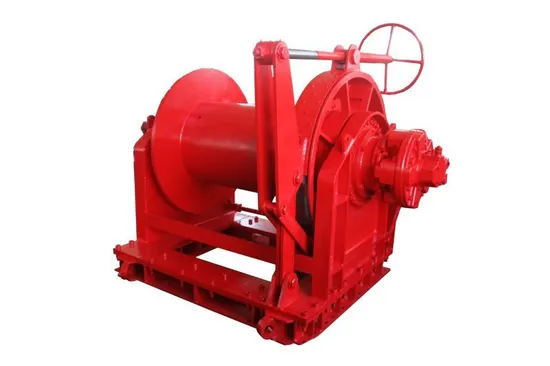

INI 50kN 5 ton hydraulic recovery winch truck winch
ISYJ series recovery winches patent product of our company. It's a huge success with tow truck manufactures. We have wide line pull available ranging from 1 ton to 30 ton. It has a brake and a manual declutch system which is fitted at the final stage of gearbox. When the operator pulls out the handle, the drum can free run.
The power generated by the hydraulic motor is transferred to the drum by way of planetary gear units incorporated in the drum.

Main Features

1. We can provide tailored solution to customers.
2. Wide line pull range up to 30 ton.
3. High starting& working efficiency
4. Simple structure and longer lifetime
5. Low maintenance relieves your anxiety
6. A range of accessories such as rope guides and pressure rollers are available on request.

Application

They can be used to pull salvage vehicles, cross country vehicles, military heavy trucks and bulldozers which are damaged or stuck in mud and they can be used for self recovery. Outline drawing of 30 ton hydraulic recovery winch/truck winch Specification (can be revised to meet customer's specific needs.)
Features 1 Heavy duty high torque hydraulic motor. 2 Extremely watertight with good quality internal seal. 3 Free spooling clutch-Rotation (normal manual clutch). 4 Compact structure, easy for mounting by two angle bar. 5 Fast line speed provide high efficiency for recovery 6 With cable tensioner 7 Integrated mechanical brake. 8 Winch can be mounted on wrecker, recovery truck, or other vehicles Performance

Rated line pull (1st layer)	KN / kgs / lbs	39/ 4000 / 9000
Motor displacement	ml/rev	80
Oil flow	L/min	15-60
Oil pressure	MPa	14
Gear ratio		23:1
Wire rope (diameter x length)		Φ11mm x 25metre
Drum dimensions (diameter x length)	mm	Φ88 xΦ192 x 200
Mounting dimension and bolts		300mm x 280mm 8-M12
Overall dimension	mm	516(524) x 316(376) x 237
Net weight (with wire rope and hook)	kg	48

Line pull, oil pressure and oil flow, line speed

Line pull (KN)	Oil pressure (Mpa)	Oil flow (L/min)	Speed (m/min)
0	3.5	15	2.5
27	8.5	25	4.0
36	11.0	40	6.5
39	14.0	50	8.0
49	15.0	60	9.5

Layer of calbe, line pull per layer, speed and wire rope capacity

Layer of cable	Line pull (KN)	Speed (m/min)	Wire rope capacity
1	39	9.5	5
2	34	11.8	12
3	28	13.9	19
4	25	16.0	25

Certification

---
