Flexible Electrical Industry Wire Electronic Copper Wire

Product Description

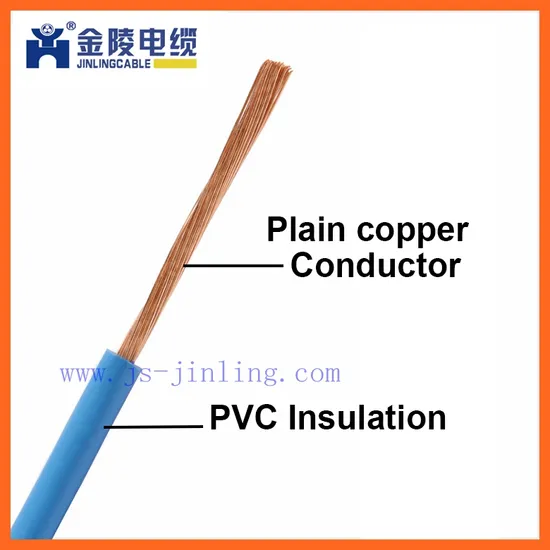

Flexible Electrical Industry Wire electronic copper wire Structure:
Flexible copper conductor Class 5 according to IEC60228, PVC Insulated
Flexible Electrical Industry Wire electronic copper wire STANDARD:
BS6004 IEC60227 Flexible Electrical Industry Wire electronic copper wire APPLICATION: These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against earth. Flexible Electrical Industry Wire electronic copper wire Technical Data:
Working Voltage:450/750V
Test voltage: 2500 V
Maximum temperature range during operation : 70°C
Maximum short circuit temperature (5 Seconds): 160°C
Bending radius: 12.5 x Overall Diameter
Insulation resistance:10MΩ x km Cable Parameter:

No. of core x Conductor Area	Class of conductor	Insulation Thickness	Overall Diamete	Cable Weight	DC Resistance at 20 C Conductor		DC Resistance at 70 C Insulation	Standard Packing Length
					Plain copper	Tinned copper
mm2		nom. (mm)	approx. (mm)	approx. (kg/km)	max. (ohm/km)	max. (ohm/km)	min. (Mohm.km)	(meter/ packing)
1 x 1,5	5	0,70	3.1	20	13.3	13.7	0.01	100/c
1 x 2,5	5	0,80	3.6	31	7.98	8.21	0.009	100/c
1 x 4,0	5	0,80	4.3	48	4.95	5.09	0.007	100/c
1 x 6,0	5	0,80	4.9	69	3.3	3.39	0.006	100/c
1 x 10	5	1,00	6.4	121	1.91	1.95	0.0056	100/c
1 x 16	5	1,00	8.1	211	1.21	1.24	0.0046	100/c
1 x 25	5	1,20	9.8	303	0.78	0.795	0.0044	100/c
1 x 35	5	1,20	11.1	417	0.554	0.565	0.0038	100/c
1 x 50	5	1,40	13.1	539	0.386	0.393	0.0037	100/c
1 x 70	5	1,40	15.5	730	0.272	0.277	0.0032	100/c
1 x 95	5	1,60	17.2	900	0.206	0.21	0.0032	100/c
1 x 120	5	1,60	19.7	1135	0.161	0.164	0.0029	100/c
1 x 150	5	1,80	21.3	1410	0.129	0.132	0.0029	100/c
1 x 185	5	2,00	23.4	1845	0.106	0.108	0.0029	100/c
1 x 240	5	2,20	27.1	2270	0.0801	0.0817	0.0028	100/c

---
