OEM/ODM Lab-Use Beta-400 Precision Metallurgy Automatic Metallographic Abrasive Sample Cutter Specimen Cutter Metallographic Inspection Cutting Machine

Product Description

Model					Beta-400MA
Cut-off Wheel		Speed	800-2000rpm		Safety	E-stop	Press to cut off the control circuit
		Diameter	Φ400~Φ450mm			Interlock switch	Door is locked while cutting
		Arbor Dia.	Φ32mm			Joystick	Two-handed operation
		Height above table	220mm @Φ400 blade; 190mm @Φ450 blade			Overload protection	Automatic adjust feed rate
Cutting table		Size (W×D)	438X388 mm		Cooling Tank	Capacity	150L
		T-slots	12mm			Dimensions	1200x450x610mm(WxDxH, with water pump)
		Amount of feed	0.1-4mm/S			Inlet & Outlet	Inlet: ID=Φ19 mm hose ; Outlet: ID= Φ38 mm hose
		Travel along Y-	370mm			Water flow	6 channels, flow rate: 100L/min
		Travel along X-	220mm, Manual		Smart cutting	Cut mode	Manual/Table Feeding /Chop Cut
Capacity @ Φ400 Wheel		Dia.	Φ130 mm			Feed mode	Constant speed/ Pulse /Auto-adjust speed
		Height × Length	130x400 mm		Dimension	W*D*H	1017*1317*1729mm(closed); 1851*1774*2224mm(open)
Capacity @ Φ450 Wheel		Dia.	Φ150mm		Weight	Main unit	550kg
		Height × Length	150x300mm			Water tank	40kg
Power supply		Power inlet	3x380V/50Hz+1N + 1PE
		Rated power	7.5KW

Trojan is a professional supplier and service provider of metallographic equipment and consumables. We have designed and produced a series of metallographic cutting machines. Beta-400MA cutting machine has applies the advanced cutting technology and can meet various different cutting requirements of customers. The Beta-400MA is a large Manual/ Automatic cutting Machine suitable for cutting specimens of various metal materials, ceramics, quartz glass and petrographic samples. The machine is equipped with a variety of fixtures to cut irregularly shaped samples, and it realizes the feed cutting of worktable(Y-axis) and chopping cutting (Z-axis). which is flexible and automatic to improve the cutting efficiency. The pulsing cutting with a larger circulating water tank greatly avoids the surface burning of specimen.
*Cast aluminum base&304 stainless steel cover, strong overall rigidity, more durable, corrosion-resistant.
Using joystick to control the movement of the blade and table, more labor-saving & efficient.
*Large table and operating space.
*The X-axis(parallel cutting) can be moving manually, the multiple cutting only need once clamping.

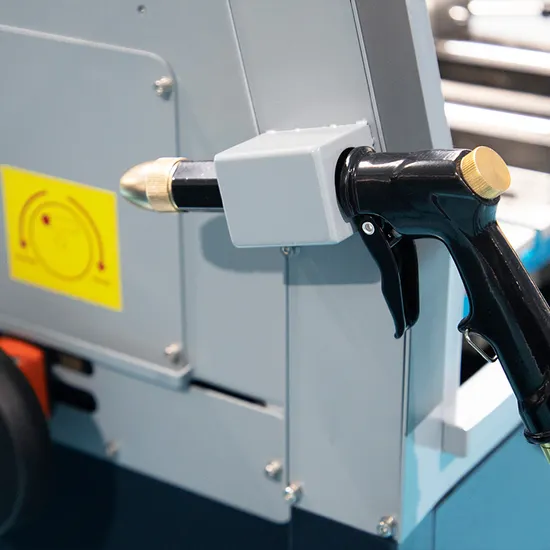

*Equipped with Auto-Washing function, the water mist on the window and swarf in the cutting chamber can be quickly removed.
*Equipped with auto ventilation and air purification device, it can quickly remove the water vapor in the cutting room and purify the odor generated during cutting.
*Floor-standing design with independent recirculating tank, easy to move and clean.
*Equipped with laser alignment device.
More Related Products
Certifications

Recommend for you
Scope of application
Company Profile
Exhibition Display

Packaging & Shipping
FAQ
Q: I didn't use this kind of machine before, is it easy for me to operate?
A: We will send you how-to tutorials and guide video in English which can teach you how to operate the machine. We can also assist
you by E-mail, phone call, online group chat and any other ways if you still have trouble handling it.
Q: If the machine has problem in my place, how could I do?
A: We could send free parts to you in warranty period if machines have any problem under normal use.
Q: What is the price and payment terms?
A: EXW, CIF, FOB we all can accept payment: TT/Paypal /LC/Western Union.etc

---
