Steel Ball Cold Former Machine Factory

Product Description

PROLU		Steel Ball Cold Heading Machine and Related Machine

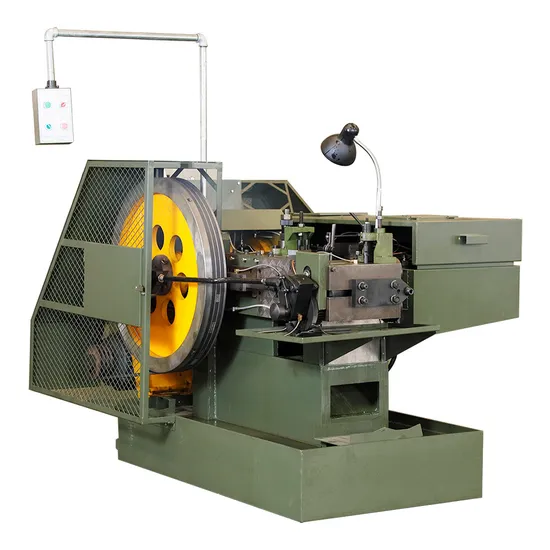

Steel Ball Cold Heading Machine(380V)
Item	Model	Steel ball diameter (mm)	RPM (pcs/min)	Motor power (KW)	Oil pump power (KW)	Volume (M)	Weight (KG)
1	Z32G-51 (High Speed)	3-5	600	5.5	1.1	3×1.5×1.7	5300
2	Z32G-81 (High Speed)	5-8	550	11	1.1	3×1.5×1.7	5600
3	LD-50Z	2.5-4	280	1.1	0.12	1.2×0.8×1.3	500
4	LD-75AZ	5-7.2	180	2.2	0.12	1.8×1.2×1.2	1600
5	LD-100Z	6-10	170	4	0.12	2.8×1.5×1.8	2500
6	LD-130Z	8-12	130	7.5	0.18	2.9×1.5×1.8	3500
7	LD-160Z	12-16	100	15	0.18	3.4×1.9×1.8	6200
8	JM-220Z	16-22	75	37	0.55	5.2×2.5×2.6	23000
Steel Ball Grinding Machine(380V)
1	3ML4980A	3-25	400	45	/	1.4×3.2×2.1	5500
Wire Cutting Machine(380V)
1	Q50-100Z	1-3	800-1300	1.1	0.12	1.3×1.3×1.3	550

Machine Feature:

*Vertical sliding plate,widen and thicken, bigger size . entirety quench. Slide stabilization.

*Sliding block, cast alloy steel

*Mould pedestal, high processing accuracy.

*Pull rod,spring pedestal,straight line pedestal,knife rest pedestal, precision cast steel

*Install sliding block baseplate,shock absorption,antiwear,lengthen using life.

*Oil line reasonable layout, lubricate all parts.

*Curve sliding plate, entirety, without insert.

*Crankshaft,high strength and toughness,antiwear alloy steel,widen and thicken.

*Lifting transmission plate,cutting by laser cutting machine.impact toughness well, high strength.

*Second axle cam, control the accuracy 3%-5% millimeter

*Auto stop without lubricating oil

*Taiwan Electrical motor

*Main electric circuit: French brand

Company Profile:
Shandong Prolu Machinery Technology Co.,Ltd is the international trading company of shunda and yuanxu,behind steel ball cold heading machine and screw cold heading machine of ProLu,is the"cold forming " engineering mastery of 21 years of shunda and yuanxu.
Our development basic on continuing research of the productions,high-quality system,and raw material supply chin system. All machines and spare parts are 100% qualified be test by JinanBureau of quality and technical supervision,all meet the china and CE standard.
We have 90% market share in china with steel ball cold heading machine,and screw cold heading machine be sold in china in 5 years.
---Total 16000 square meter,workshop 10000 square meter, office area 1000 square meter,4 spare parts warehouses, 7 workshops
---R&D team:27 engineers,spare parts process team:80 workers and machine assembly team:40 workers
---30 lathe,12 high precision CNC lathe,17 middle-size CNC center of lathe,2 large-size CNC center of lathe
---95% self-produce spare parts of steel ball and screw cold heading machine,independent research,
high-precision process,quality guarantee

---
