| General | |

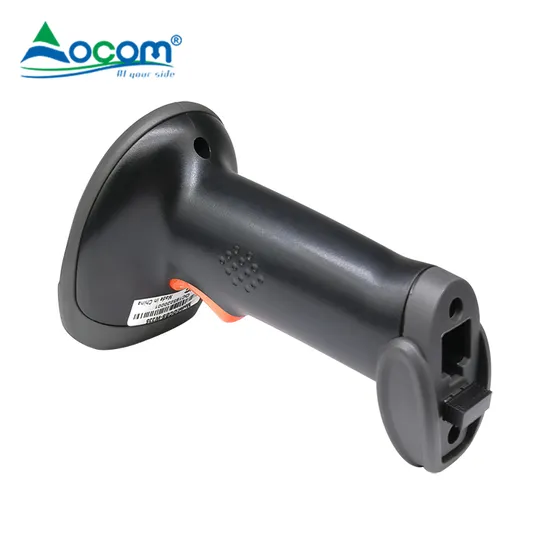

| Model | OCBS-W235 |
| CPU | 32 bit |
| Wireless function | 2.4G+USB or 2.4G+Bluetooth+USB for optional |
| Battery | 1500mAh (20000 times scan and transmission) |
| Working Voltage | 5VDC ±10% |
| Current | working 250mA±5% |
| Performance | |
| Light Resource | CMOS |
| Decode error rate | Less than 1/8 million |
| Image resolution | 1MP(1280*800) |
| Precision | 1D≥ 4 mil (0.10mm),2D≥ 7 mil (0.10mm) |
| Print Contrast Signal | ≥ 30° |
| scan angle | Yaw(Skew)55° & Pitch55° |
| Decoding ability | 1D : UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code 93, Code32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, RSS-14, RSS-14 Expanded, RSS-14 Limited, Composite Code-A, Composite Code-B, Composite Code-C. 2D: PDF417,Micro PDF 417, QR Code (QR1/2, Micro),Data Matrix, Aztec, Chinese Sensible Code |
| Depth of scan field | Code 39-5mil:60mm-120mm UPCA-13mil(100%):35mm-310mm |
| Physical | |
| Weight | Gross:300g |
| Package | 190*115*80mm |
| 50 in 1 carton | 580*410*430mm/15.0kg |
| Environment | |
| Working temperature& humidity | 0 to 45 degrees centigrade, 10%~80% No condensation |
| Storage temperature& humidity | -20 to 60 degrees centigrade , 10%~90% No condensation |
