PTFE Glassfiber Sheet Backing Adhesive Ot Nothing Adhesive (3A3009)

Product Description

PTFE Glassfiber Sheet Backing Adhesive Ot Nothing Adhesive (3A3009)
Description: the PTFE fabric, PTFE tape are coated PTFE under high quality glassfiber fabric with good temperature resistance, excellent chemical corrosion resistant & electrical properties, low friction characteristics. It can be used under the temperature of -140°C to 260°C, which has the capability of weather resistant and age resistant. Under practical situation of 250°C for 200 days, not only the intensity will not decrease, the weight will not reduce; 350°C for 120 hours, the weight only decreased less than 0.6%; -140°C, it will not chap and keep the original pliability. Resist acid, alkali, aqua fortis and various kinds of organic liquid corrosion almost to resisting all kinds of medicament. Hardly to adhere any material, it is easy to wash away the blot or other dust such as resin, coating material etc.

Specifications:
material: glassfiber coated PTFE
quality: premium grade
color: brown, black, white, red etc.
surface: smooth/smooth
temperature resist: -140°C - +260°C
adhesive: agree on one side

High Temperature PTFE Fiberglass Fabric And Cloth with RoHS Certificate
PTFE fabrics are made from best imported fiberglass as the weaving material to plain knit or specially knit into superior fiberglass basic cloth, coated with fine PTFE resin then make it into various of PTFE high temperature resistance cloth in different thickness and widths.

Features of PTFE fabric:
1. Good temperature tolerance, 24 working temperature -140 to 350°C.
2. Non stick,easy to clear adhesives on the suface.
3. Good chemical resistance:it can almostly resist most of chemical medicines,acids,alkalis,and salt;fireproof,lower in aging.
4. Low coefficient of friction and dielectric constant,good insulating capacity.
5. Stable dimension,high intensity,elongation coefficient less 5‰

Applications of PTFE fabric:
1. Used as varios of liners to resist high temperature ,such as microwave liner,over liner,or other liners.
2. Used as stick liners intermediate.
3. Used as various conveyor belts,fusing belts,sealing belts or anywhere need resisting high temperature,non stick,chemical resistance etc.
4. Used as covering or wrapping material in petroleum,chemical industries,as wrapping materal,insulating material,high temperature resistance material in electrical industries,desulfurizing material in power plant etc

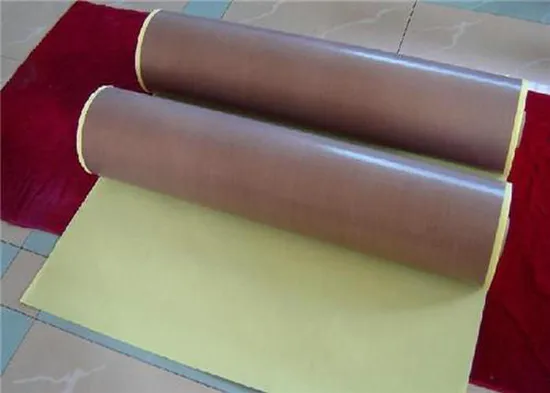

PTFE Adhesive Tape,
material: fine glassfiber coat double PTFE
color: brown, black, beige, white
adhesive: agreed one side
thickness: 0.1-0.3mm
width: 0.01-1.2m
length: 10-50m
OEM & customized sizes are agreed
packing in rolls, pallets or crates
***When you enquiry, pls confirm the material, color, size and quantity***

Item	Color	Thickness	Max Width	Weight	Tensile Strength	Temperature
3A3008B08	brown	0.08mm	1250mm	150g/m²	180/140N/cm	-140 - +260°C
3A3008W08	white	0.08mm	1250mm	150g/m²	180/140N/cm	-140 - +260°C
3A3008M08	beige	0.08mm	1250mm	150g/m²	180/140N/cm	-140 - +260°C
3A3008H08	black	0.08mm	1250mm	150g/m²	180/140N/cm	-140 - +260°C
3A3008B13	brown	0.13mm	1250mm	260g/m²	290/260N/cm	-140 - +260°C
3A3008W13	white	0.13mm	1250mm	260g/m²	290/260N/cm	-140 - +260°C
3A3008M13	beige	0.13mm	1250mm	260g/m²	290/260N/cm	-140 - +260°C
3A3008H13	black	0.13mm	1250mm	260g/m²	290/260N/cm	-140 - +260°C
3A3008B15	brown	0.15mm	1250mm	300g/m²	310/260N/cm	-140 - +260°C
3A3008W15	white	0.15mm	1250mm	300g/m²	310/260N/cm	-140 - +260°C
3A3008M15	beige	0.15mm	1250mm	300g/m²	310/260N/cm	-140 - +260°C
3A3008H15	black	0.15mm	1250mm	300g/m²	310/260N/cm	-140 - +260°C
3A3008B18	brown	0.18mm	1250mm	330g/m²	400/360N/cm	-140 - +260°C
3A3008W18	white	0.18mm	1250mm	330g/m²	400/360N/cm	-140 - +260°C
3A3008M18	beige	0.18mm	1250mm	330g/m²	400/360N/cm	-140 - +260°C
3A3008H18	black	0.18mm	1250mm	330g/m²	400/360N/cm	-140 - +260°C
3A3008B25	brown	0.25mm	2800mm	450g/m²	550/500N/cm	-140 - +260°C
3A3008W25	white	0.25mm	2800mm	450g/m²	550/500N/cm	-140 - +260°C
3A3008M25	beige	0.25mm	2800mm	450g/m²	550/500N/cm	-140 - +260°C
3A3008H25	black	0.25mm	2800mm	450g/m²	550/500N/cm	-140 - +260°C
3A3008B35	brown	0.35mm	3200mm	700g/m²	650/600N/cm	-140 - +260°C
3A3008W35	white	0.35mm	3200mm	700g/m²	650/600N/cm	-140 - +260°C
3A3008M35	beige	0.35mm	3200mm	700g/m²	650/600N/cm	-140 - +260°C
3A3008H35	black	0.35mm	3200mm	700g/m²	650/600N/cm	-140 - +260°C
3A3008B40	Brown	0.40mm	3500mm	780g/m²	820/500N/cm	-140 - +260°C
3A3008W40	White	0.40mm	3500mm	780g/m²	820/500N/cm	-140 - +260°C
3A3008M40	beige	0.40mm	3500mm	780g/m²	820/500N/cm	-140 - +260°C
3A3008H40	black	0.40mm	3500mm	780g/m²	820/500N/cm	-140 - +260°C
3A3008B65	Brown	0.65mm	4000mm	1100g/m²	880/730N/cm	-140 - +260°C
3A3008W65	White	0.65mm	4000mm	1100g/m²	880/730N/cm	-140 - +260°C
3A3008M65	beige	0.65mm	4000mm	1100g/m²	880/730N/cm	-140 - +260°C
3A3008H65	black	0.65mm	4000mm	1100g/m²	880/730N/cm	-140 - +260°C
3A3008B90	Brown	0.90mm	4000mm	1500g/m²	1050/950N/cm	-140 - +260°C
3A3008W90	White	0.90mm	4000mm	1500g/m²	1050/950N/cm	-140 - +260°C
3A3008M90	beige	0.90mm	4000mm	1500g/m²	1050/950N/cm	-140 - +260°C
3A3008H90	black	0.90mm	4000mm	1500g/m²	1050/950N/cm	-140 - +260°C

---
