CNC Vtl /Single Column CNC Vertical Lathe Ck5112 Ck5116 Ck5120

Product Description

PRODUCTION DESCRIPTION
1). It is mostly used to process middle-diameter tire mould and flanges, various valves and pipelines, pressure vessels, screw propeller, steamer machine accessories , plastic mould, shafts and other work-piece .
2). It is suitable for processing the internal/external cylindrical surface, conical surface, end face etc
3). Spindle bearings use domestic famous-brand company products.
4). Headstock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates offsets.
5). Gears in headstock and guide way are processed by quenching to ensure accurate transmission and high rigidity.
6). Vertical lathe table inlaids with zinc alloy wear-resistant guide guard and can access pressure oil (0.2-0.4MPA) between the rails for improving load-carrying ability of workbench.
7). Vertical lathe casting has passed through strict artificially aged and vibration aging in order to make sure the rigidity and stability of lathe.
Based on excellent processing equipments, strong technical force, perfect inspection way, and inpectable management system. Baili Machine has passed National ISO9001:2008 Quality Management System Certification.

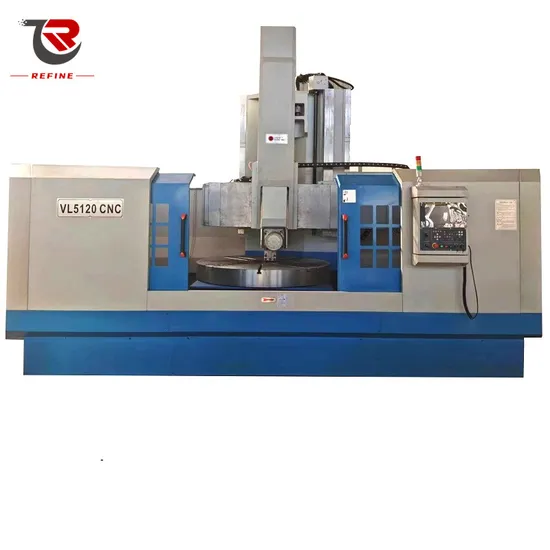

MACHINE PICTURES

PARAMETERS

ITEMS	UNIT	CK5112	CK5116	CK5120	CK5123	CK5126
Max. turning diameter	mm	1250	1600	2000	2300	2600
Max. height of workpiece	mm	1000	1200	1250	1250	1600
Max. weight of workpiece	tons	3.2	5	5	8	10
Worktable diameter	mm	1000	1400	1800	2000	2300
Worktable speed series	step	4 gears, stepless	4 gears, stepless	16 gears, stepless	16 gears, stepless	16 gears, stepless
Worktable speed range	r/min	6.3-200	5-160	4-125	3.2-100	2.5-80
Main motor power	KW	22	30	30	30	37
Beam travel	mm	650	850	1000	1000	1250

NAME	SPECIFICATION	QTY
Chuck Jaw		4
Toolhlder		1
Cutter Bar		1
Foundation bolt	M24x500	7
Hex nut	M24	7
Gasket	24	7
Square tube spanner	22	1
Leveling bolts	260x130x70	10
Operation Manual	English	1
Quality Certificate	English	1
Packing List	English	1

MACHINE FEATURES
Tool Holder:


The default tool post is a four-position electric tool post, which is selected from Yantai Universal Brand and belongs to the best tool post supplier in China. Depending on the size of the machine tool, we also provide 6-position and 8-position tool post.
Chip Conveyor:

If machine has full cover, the Chip Conveyor should be choose.It is suitable for steel industry scrap (material) fast delivery. With special structure can be better suitable for the delivery of chips under bad working conditions, such as steel pipe industry wire machine produced by the long strip of large roll chip.
The worktable is made of high-hardness materials. Under the condition of ensuring large bearing capacity, the guide surface of the workbench base has been scraped, which makes the machining accuracy higher, which has a significant advantage over the same industry.
Electrical control BOX
Electrical control elements are installed in the power distribution cabinet, and all operating elements are centrally installed in the hanging button station.
