30000L Versatile Magnetic Agitator High Pressure Reactor for Chemical Applications

US$247,000.00-268,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

FCHA

Type

Reaction Kettle

Material

S30408, Q345r,S32168

Capacity

34.5m³

Structure

Internal Coil, External Half Tube

Pressure

Positive

Heating

Steam, 7ºC Water

Heat Transfer Structure

External Half Tube, Inner Coil Tube

Automatic Grade

Automatic

Condition

New

Rotation Speed

230r/Min

Power

110kw

Seal Type

Magnetic Seal Zero Leakage

Total Weight

47618

Lead Time

100 Days

Oversea Branch

California, USA

ODM

Available

OEM

Available

Specification

34.5m³

Trademark

LUHAO

Origin

China

HS Code

84198990

Product Description

Vessel Capacity m³: 34.5 Material: S30408+Q345R Design pressure MPa: 7.0 Design temperature ºC: 100 Work pressure MPa: 6.0 Work temperature ºC: 80 Working life: 10 years External half tube Capacity m³: 1.9 Material: 20/Q345R Design pressure MPa: 0.6 Design temperature ºC: 165 Work pressure MPa: 0.5 Work temperature ºC: 150 Medium: Steam Heat exchange area m2: 85.5 Coil tube Capacity m³: 0.60 Material: S32168 Design pressure MPa: 0.6 Design temperature ºC: 30 Work pressure MPa: 0.5 Work temperature ºC: 7 Medium: 7ºC water Heat exchange area m2: 60.6 Total weight Kg: 47618

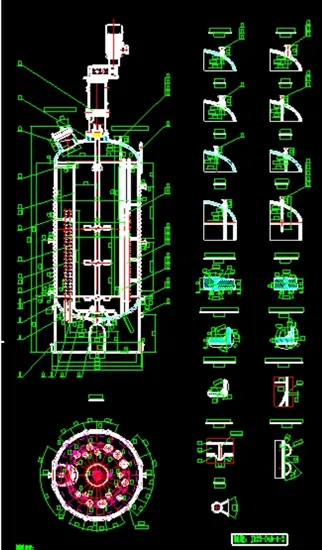

*For confidential reason, the drawing is in low definition. Please contact us for more information.

https://luhaochemreactors.en.made-in-china.com/product-list-1.html

LUHAO Chemical Machinery Co. Ltd

Pressure Vessel Design Information Collection Table

Vessel

Jacket (Coil)

Work Medium

Name

Components

Density (Kg/m³)

Characteristics

Viscosity (cP)

Flow Velocity(m³/h)

Design pressure (Mpa)

Work pressure (Mpa)

Design temperature(ºC)

Work temperature (ºC)

Wall temperature (ºC)

Diamter (mm)

Length (mm)

Capacity(m³)

Effective capacity (m³)

Corrosion allowance (mm)

Corrosion speed (mm/year)

Recommended Materials

Lowest value of average monthly temperature(ºC)

Site location

Installation condition

Indoor Outdoor

Catalyst Volume(m³)

Catalyst Density(Kg/m³)

Heat Transfer Area()

Coil Specification

Basic Wind Pressure(Mpa)

Seismic Basic Intensity

Ambient Temperature(ºC)

Site Type

Operating Mode

Insulation Materials

Name

Thickness

Density (Kg/m³)

Seal Requirements

Liquid Level Gauge

Emergency Cut-off

Static Electricity Removal

Anti Eddy Current Requirement for Liquid Outlet

Installation and Mantainance Requirements

Expected Useful Life (years)

Safety accessories

Vessel

Jacket (Coil)

Location

Type

Specification

Quantity

Set pressure(Mpa)

Burst disc

Burst pressure(Mpa)

Safety discharge(kg/h)

Agitator

Type

Impeller Diameter(mm)

Speed(r/min)

Motor

Model

Power(kw)

Explosion Proof Grade

Speed reducer

Piping Table

No.

Dimension

Pressure

Connection Size Standard

Connection Surface Type

Function

Other Requirements if any
