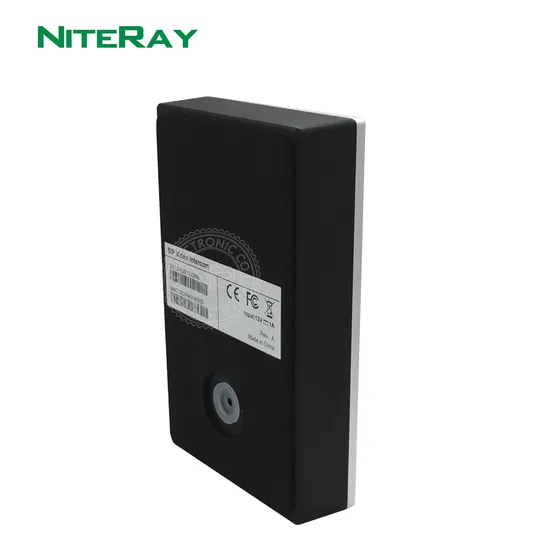

Q514 SIP Intercom & Audio Door Phone The Q514 SIP Video Intercom is designed for outdoor scenes with high reliability, HD Audio/Video, and IP65/IK10 protection grade. It combines security, audio/video intercom and broadcasting functionalities and offer the best communication solution for users.
-- Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time
-- Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
| Generic | | Audio |
| 2 SIP Lines | | Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB |
| Full-duplex handsfree(HF) | | Wideband Codec: G.722 |
| Intelligent DSS Keys (Speed Dial/intercom etc) | | Full-duplex Acoustic Echo Canceller (AEC, 96ms tail-length |
| Auto answer | | Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ |
| Intercom function | | Background Noise Estimation (BNE) |
| Industrial Standard: IP65&IK10, CE/FCC | | Packet Loss Concealment (PLC) |
| | | Dynamic Adaptive litter Buffer up to 300ms |
| Intercom Function | | DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO |
| Dynamic multicast function | | |
| Support ONVIF | | Deployment & Maintenance |
| Support customized DSS Keys | | Auto-Provisioning |
| Network Time Synchronization | | Web Management Portal |
| Action URL / Active URI | | Web-based Packet Dump |
| | | Configuration Import and Export |
| Video | | Firmware Upgrade |
| Sensor: 1/2.7" color CMOS | | Syslog |
| 2 Megapixels | | |
| Video codec: H.264 | | Physical Specifications |
| Resolution: main stream 1280×720@25fps | | 1 DSS button (speed dial button) |
| Substream 704×576(D1)@25fps | | 1 RJ45 port |
| Viewing angle: 112° (H), 84° (V) | | 1 audio output interface |
| Minimum illumination: 0.1Lux, support infrared illumination | | 1 recording output interface |
| | | 2 short circuit input interface |
| Networking | | 2 relays: MAX DC30V/2A, AC125V/0.5A |
| 10/100Mbps | | Active switching output: 12V/500mA DC(only 1 relay support) |
| IP Configuration: Static / DHCP / PPPoE | | 2 indoor magnetic switch |
| Network access authority authentication: 802.1x | | 1 tamper alarm switch |
| VPN: L2TP / OpenVPN | | Power: DC12V/1A or PoE |
| | | Housing material: aluminum alloy shell |
| Protocols | | Protection level:IP65 and IK10 |
| SIP2.0 over UDP/TCP/TLS | | Installation: Wall-mounting |
| RTP/RTCP/SRTP | | Working temperature: -40 ~ 70°C |
| STUN | | Storage temperature: -40 ~ 70°C |
| DHCP/LLDP/PPPoE/802.1x | | Relative humidity: 10% - 90% |
| L2TP /FTP/TFTP/HTTP/HTTPS/SNTP | | Equipment Dimension: 195x120x34mm |
| OpenVPN | | Packing Dimension: 260x165x62mm |
| TR-069 | | Outer CTN Dimension: 348x328x280mm(10 PCS) |
