Competitive Price Electro-Hydraulic CNC Press Brake Machine with 4 Meter Building Material Bending

Product Description

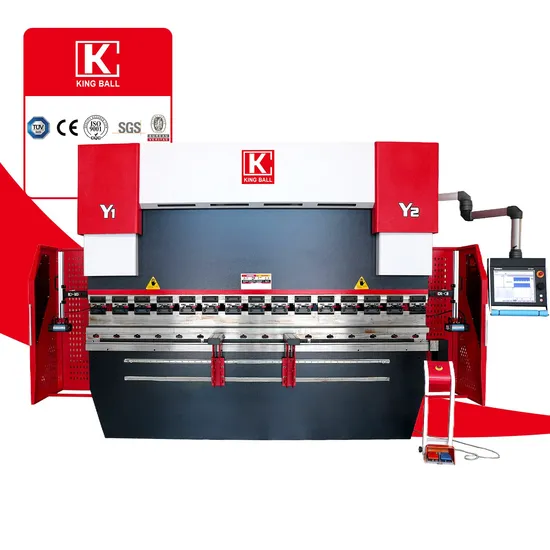

Electro hydraulic Synchronous CNC Press Brake
Model: KCN-30040
8+1 Axes CNC Control(X1,X2,Y1,Y2,R1,R2,Z1,Z2,W)
X1,X2: Backgauge front and back; Y1,Y2, : Left and right oil cylinder stroke
R1,R2 : Backgauge up and down; Z1,Z2: Left and right stopper movement
W: Worktable crowning
Main functions and features
1. Overall welded and processed structure.
2. Electric hydraulic proportional servo synchronization, ensuring repeated accuracy.
3. Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01,
parallelism 0.02.
4. Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device.
5. Switzerland cybelec CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories
of famous brand are installed for perfect machine performance.
6. Ram stroke(Y1, Y2),backgauge (X, R,Z) are controlled by CNC controller while ball screw and linear guide rail
installed for high repeatability precision.
7. Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper,
for processing precision of machine to be higher.
Technical Parameters

NO.	Item	Parameter		Unit
1	Nominal pressure	3000		KN
2	Table length	4000		mm
3	Max. Slider stroke	250		mm
4	Max. Shut height	530		mm
5	Between columns	3200		mm
6	Throat depth	400		mm
7	Main motor power	22		KW
8	Down Speed	100		mm/s
9	Pressing Speed	8		mm/s
10	Return Speed	100		mm/s
11	Control axes	X1+X2+Y1+Y2+R1+R2 +Z1+Z2+W		/
12	X axes Stroke	500		mm
13	X axes Speed	250		mm/s
14	R axes Stroke	200		mm
15	R axes Speed	60		mm/s
16	Z axes Speed	100		mm/s
17	Backgauge Stoppers	4		/
		L	4500	mm
18	Overall dimension	W	2250	mm
		H	3200	mm
19	Machine weight	21000		kg

Detailed Pictures
Backgauge with ball screw and linear guide, high precision, fast speed and low noise.

Double sliding front support arm installed European style quick release clamping.
long service life.


Delta Main motor servo motor Taiwan brand. The guideway use the brass, wear-resisting
Sunny pump USA brand. long service life.
Rexroth valve German brand.

High precision electric table crowning. High-precision grating scale mounted on C-board.

France Schneider components, DSP safety protection.
anti-interference, stable and durable.
DA69T CNC controller 1. 3D and 2D graphical touch screen programming mode
2. 3D visualisation in simulation and production 3. 17" high resolution colour TFT 4. Full Windows application suite 5. Delem Modusys compatibility (module scalability and adaptivity) 6. USB, peripheral interfacing 7. User specific application support within the control's multitasking environment 8. Sensor bending & correction interface 9. Profile-T3D offline software
Main configuration

Name	Producer
CNC controller	DA69T Delem Holland brand
Main motor	Delta Taiwan Brand
Electrical components	Schneider France brand
Gear pump	Sunny USA brand
Seal ring	NOK Japan brand
Hydraulic system	Boschrexroth Germany brand
Ball screw ,Linear guide	HIWIN Taiwan brand
Grating ruler	GIVI Italy brand
Tubing connector	EMB Germany Brand
Servo Motor and drive	Delta Taiwan brand
