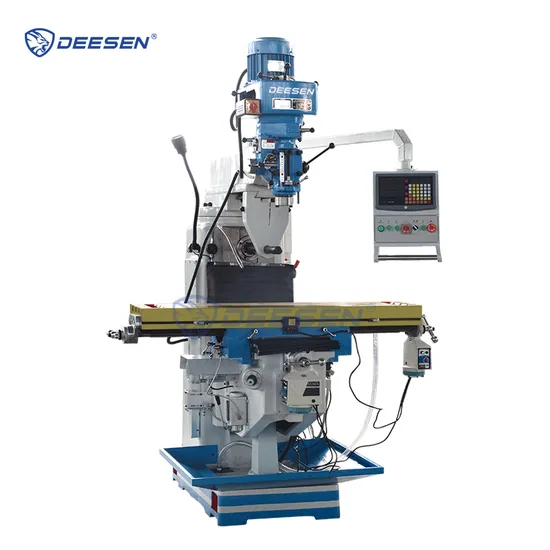

Simple Operation X6325 Safe Durable Good Practicality Turret Milling Machine with CE

Product Description

Simple operation X6325 Safe durable good practicality turret milling machine with CE
Product Description
The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360°on the machine bed, for the processing range can be greater than the table size.
The speed of milling head is rather high and it makes the machine especailly good working with small cutters.
This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing.
The main feature :
1. Robust construction and heavy duty design.
2. The machine body is made of Meehanite cast iron
3. The milling head is made of SCM-21.Imported from Taiwan.
4. The milling head can swing 90° right and left side,45° front and back side.
5. The ram can swing 180° horizontally.
6. The working table and guide rail are heating treated and precision grinding.
7. DRO and dividing head are for option.
Product Parameters
The main specification :

SPECIFICATIONS OF TURRET MILLING MACHINE X6325
Item	Unit	X6325	X6325A	X6325B	X6325C	X6325D
Table size	mm	254x1270 (10''X50'') 254x1370 (10''X50'')
Longitudinal travel	mm	850 950
Cross travel	mm	400	380	380	400	400
Vertical travel	mm	400	400	400	400	400
T-slot		3x16	3x16	3x16	3x16	3x16
Distance from spindle nose to table	mm	0-400	0-400	0-400	0-400	0-400
Ram Travel	mm	470	470	470	470	470
Spindle taper		Standard: R8; Optional: ISO30/ISO40			ISO40
Spindle travel	mm	127	127	127	127	127
Spindle speed	Rpm	Standard: 16-steps, 50Hz 66-4540; 60Hz 80-5440
		Optional: Variable 60-4200			Variable 70-3600
Spindle feed		3-steps: 0.04/0.08/0.15 mm/rev
Main motor	kw	2.25/3HP	2.25/3HP	2.25/3HP	3.75/5HP	3.75/5HP
Head Swivel (Right-Left)		90°	90°	90°	90°	90°
Head Swivel (Front-Back)		45°	45°	45°	--	45°
Single milers package	mm	1650x1550x2080
Two milers package	mm	1650x1790x2170
Three milers package	mm	1650x2285x2235
Weight	kg	1550	1380	1420	1590	1590

The Differences Between the X6325 Models
Model	Guideway	Milling Head
X6325	X axis dovetail guideway, Y/Z axis rectangular guideway	3HP Radial milling head (Right-left & Front-back)
X6325A	X/Y/Z axis dovetail guideway	3HP Radial milling head (Right-left & Front-back)
X6325B	X/Z axis dovetail guideway, Y axis rectangular guideway	3HP Radial milling head (Right-left & Front-back)
X6325C	X axis dovetail guideway, Y/Z axis rectangular guideway	5HP Radial milling head (Right-left)
X6325D	X axis dovetail guideway, Y/Z axis rectangular guideway	5HP Radial milling head (Right-left & Front-back)

Standard Accessories: 1.milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4 3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27 6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.work lamp
9. cooling systerm 10.universal milling head XC63T4A
Optional Accessories: 1.X/Y power feed
2.Z axis lifting motor
3.three axis sino dro
4.QH200 flat vice
Detailed Photos
01
Taiwan turret milling head cans
wivel 45°(Front-rear),
rotate 90 °(left-right).
02
Ultra-audio quenching,
precision grinding and
scraping guide.
03
3 Axis digital readout isoptional,
Need extra cost.
04
X/Y Axis auto feed, Z axis electric lifting,improve proceeing time;
It is optional , Need Extra cost
05 1. safety electrical components
2. quick plug as standard
3. precision processing, high efficiency and stability

Company Profile
Since its establishment, Deesen Machine Tool (Shandong) Co., Ltd. has more than 20 years of experience as a professional lathe manufacturer. Has been deeply cultivated in the machine tool industry, has gradually developed into a highly influential enterprise.
In the field of research and development, we have invested a lot of resources and set up a professional research and development team with top talents. The team members include mechanical engineering experts, automation technology elites, etc., they keep up with the industry's cutting-edge technology trends and constantly explore innovation. With the in-depth study of the core technology of the machine tool, the company has independently developed a number of key technologies, which makes our machine tools reach the micron level in cutting accuracy, greatly improving the degree of refinement of parts processing.
In terms of production, the company adopts advanced production management system, has a modern production workshop and high-precision processing equipment. Whether it is casting, stamping, or machining, we strictly follow the principle of fine production to ensure that every component meets high quality standards. Moreover, we have established a strict quality inspection process, from raw material procurement to finished product assembly, each process is checked at various levels, using a variety of internationally accepted quality inspection methods, to ensure that the product pass rate of more than 99%.
The company has a complete range of products, from conventional ordinary machine tools to high-end CNC machine tools. Among them, our CNC machine tools have the advantages of high automation, high precision and high stability, and are widely used in high-end manufacturing fields such as automobile manufacturing, aerospace and precision mold processing.
In addition to excellent products, we have also built a perfect after-sales service network. The after-sales center arranges professional technical service personnel to provide 7×24 hours rapid response service. Whether it is equipment installation, commissioning, maintenance, or operator training, we can provide customers with a full range of quality services.
Over the years, with leading technology, excellent product quality and perfect service system, Deesen Machine Tool (Shandong) Co., Ltd. has not only occupied an important market share in China, but also exported to many countries and regions, winning wide praise from customers at home and abroad. In the future, we will continue to take innovation, quality and service as the cornerstone, constantly improve the competitiveness of enterprises, and lead the machine tool industry to a new height.
FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )

---
