High Precision Metal Machining Vertical Machining Center CNC Machine Tools

Product Description

High Precision Metal Machining Vertical Machining Center CNC Machine Tools
Product Description
The feed axis of the machining center/milling machine is controlled by the three coordinates of X, Y and Z, and the three axes are driven by servo motors, which can realize one-time clamping of various discs, plates, shells, cams, molds and other complex parts to complete the drilling process. , milling, boring, expanding, reaming, tapping and other processes, suitable for the production of multi-variety, small and medium-sized parts, and can show its advantages for the processing of complex and high-precision parts.

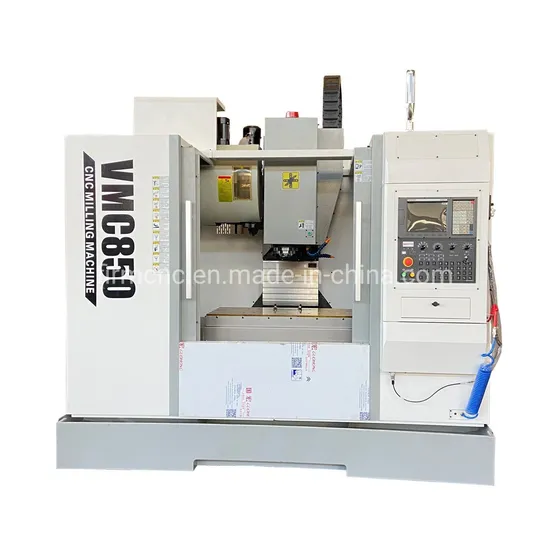

VMC 850 Vertical Machining Center
High-speed moving linear heavy-duty roller
Guideway pair
Stability of machine tool control
The large diameter C3 grade ball screw
Advantage:
#Three-axis adopts linear slideway, which has the characteristics of high rigidity, high positioning accuracy, low noise and low friction, and can be used for high-speed displacement and or best circle accuracy;
#Main structure castings are made of high-quality cast iron, with stable structure and permanent quality assurance;
#Finite element analysis method for computer calculation and analysis of castings, reasonable structural strength and combination of reinforcing ribs, provide high mechanical rigidity;
#Ultra-wide base and column are box-type structures, the saddle is widened and lengthened, the heavy-duty full support design, and the structure is solid, which can ensure the heavy-load capacity during processing;
#Strengthened structure of tendons and bones in the spindle head, the contact length ratio between the spindle head and the column is appropriate, providing stable support for the spindle;
#The machine is equipped with an anti-collision device, which can absorb the vibration caused by the impact caused by the worker's operation error, so as to minimize the damage of the impact and ensure the original accuracy;
#The machine adopts the oil-water separation design, which can effectively separate the lubricating oil and the cutting fluid, and prevent the cutting fluid from being deteriorated due to mixing and affecting the processing quality;
#The machine adopts Taiwan high-precision, high-rigidity and high-precision spindle. The belt-type spindle has strong rigidity and high reliability, and the direct-type spindle is high-speed, high-efficiency, high-precision, low-noise and low-vibration, which fully meets the needs of users;
Product Parameters

Model	VMC850	VMC1050
Travel parameters
X /Y/Z axis travel	800/500/500mm	1050/500/500mm
Spindle nose to table surface	120-620mm	120-620mm
X/Y/Z axis AC servo motor	torque N.m 15/15/22	torque N.m 15/15/22
Spindle center to column surface	550mm	550mm
Worktable
table size	1000×550mm	1000×550mm
Max.loading	600kg	600kg
T Shot	5×18×90mm	5×18×90mm
Feeding parameters
X/Y/Z axis rapid feed	24/24/20m/min	20/20/18m/min
Cutting feed	1-10m/min	1-10m/min
Spindle parameters
Main shaft connection	Belt	Belt
Spindle taper	BT40-140	BT40-150
Range of spindle speed	8000rpm	8000rpm
Spindle motor	7.5kW	7.5kW
ATC paremeters
ATC capacity	24qty	24qty
Max.tool dia	Φ80/Φ150mm	Φ80/Φ150mm
Max.tool weight	8kg	8kg
Precision
Position accuracy(JIS standard)	±0.008/300mm	±0.008/300mm
Repeat positioning accuracy(JIS standard)	±0.005mm	±0.005mm
Shape and weight
Dimensions	2750×2300×2300mm	2800×2360×2450mm
Weight	5200kg	5600kg

Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,withstrong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
Our products including cnc router, VMC machining center , cnc milling machine, wood lathe, wood cutting machine, cnc lathe, fiber laser cutting machine, co2 laser machine, laser marking marking machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you.
2: Are you trading company or manufacture?
A: We are factory.
3. How long is your delivery time?
A : Generally it is 10~20 days if the goods are in stock.Or it is 30 days if the goods aer not in stock,according to your quantity.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight.

---
