Welcome to visit

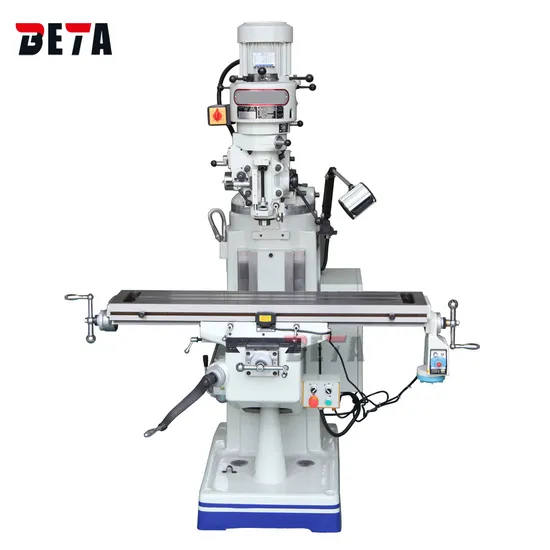

Taiwan Variable Speed R8 Spindle Taper Turret Milling Machine X6323A

US$5,000.00
1-4 Sets
US$3,000.00
5+ Sets

Basic Info.

Model NO.
X6323A
Type
Tool Milling Machine
Object
Hardware
Structure
Lifts
Milling Cutter Type
Customized
Milling Cutter Structure
Customized
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Manual Turret Milling Machine
Model
X6323A
Table Size
230X1246mm
Spindle Taper
R8
Spindle Speed
65-4500rpm
Spindle Motor Power
2.2kw 3HP
Delivery Time
2 Months
Warranty Time
12 Months
Voltage
380V
RAM Travel
315mm
Color
Blue and White
Milling Head
Taiwan Turret Milling Head
OEM
Available
Payment
T/T
Package
Wooden Pallet
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month

Packaging & Delivery

Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
1500.000kg

Product Description

Taiwan Variable Speed R8 Spindle Taper Turret Milling Machine X6323A, X6323B
Model Unit X6323A X6323B
Table size mm 230x1067 (9x42")
230x1246 (9x49")
T-slot 16mm x 3
Longitudinal travel mm 670 (850)
Cross travel mm 310
Vertical travel mm 390
Ram travel mm 315
Distance from spindle nose to table surface mm 0~380
Spindle taper R8 (optional NT30, NT40)
Quill travel mm 127
Spindle speed rpm Standard 16 steps: 65-4500 (50HZ); 80-5440 (60HZ)
Optional variable speed: 60~4200.
Quill auto. feed mm/rev 0.04 / 0.08 / 0.15
Spindle motor kw 2.2 kw/3HP
Headstock swivel º ±90º
Headstock tilting º ±45º
Floor space mm 2200x1600x2000
Machine weight kg 1000 1060

3HP Taiwan turret milling headStep spindle speed - standard, variable speed - optionalWorktable size 230x1067mm, 230x1246mmSpindle taper R8 standard, ISO30/ISO40 is optionalHead swivel 90 degree, tilt 45 degree
