Customized CNC Mini Metal Manual Turning Lathe Machine

US$6,400.00
1-2 sets
US$6,200.00
3-4 sets
US$10,900.00
5+ sets

Basic Info.

Model NO.
KX-46
Application
Metal
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Weight (Kg)
2350
Max. Weight of Workpiece(Kg)
/
Max. Turned Length (mm)
320
Spindle Bore(mm)
45
Certificates
CE / Eac (for Russia Market) / Noa
Dimension(L*W*H)
Estimated 2100*1500*1900mm
Machining Capacity
0.01
Toolpost Brand
Nusutu Turret
Warranty of Core Components
1 Year
Repeatability (X/Y/Z) (mm)
0.005
Tool Post Stations
12, 8, 6
CNC or Not
CNC
Voltage
380V
Power Requirement
380V / 13kw / 50Hz or 60Hz
Transport Package
Wooden Case
Specification
2080*1990*1540mm
Trademark
YASHU
Origin
Guangdong, China
HS Code
8458110090
Production Capacity
100 Set/Sets Per Month

Product Description

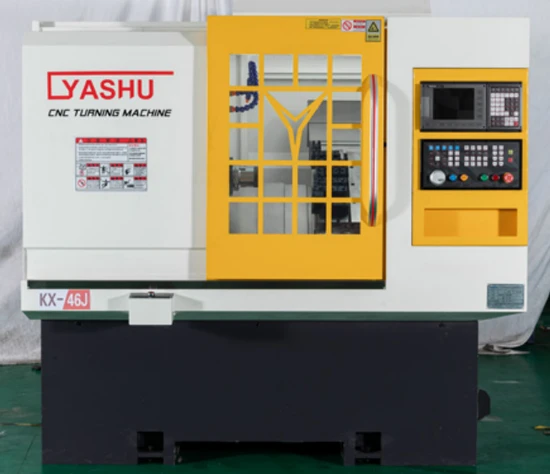

KX-46 J

Machinery Specification
Specification Parameter Optional
LATHE Slant bed degree 45°
Clamping way Hydraulic clamping
Tool form Row of knives
PART Guide rail Taiwan 30 Linear guideway
Ball screw Taiwan 32 ball grinding precision
Bearing XEZ
Ground to spindle center height 1080mm
Spindle motor 5.5kw DMC servo motor 7.5 kw DMC servo motor
Feed servo 1.5kw DMC servo motor
CNC Control System NANJINGKT 830Ti SYNTEC/GSK/LNC
Application scope of processing Normal Use Value Maximum Value
working
ability		 Spindle bore φ45mm φ45mm
Maximum particle diameter
(disc type)		 300mm 350mm
Maximum length of workpiece to be processed 300mm 320mm
Single side cutting of
stainless steel		 3mm 4.5mm
Repositioning accuracy ±0.0075mm
smooth finish 1RA 1.6RA
High center of tool rest 50mm
Turning diameter φ400mm
Square tool specification 20*20mm
travel X axis travel 900mm
Z axis travel 300mm
Feed X-axis fast moving velocity 25m/min 30m/min
Z-axis fast moving velocity 25m/min 30m/min
X axis servo power 1.5KW
Z axis servo power 1.5KW
Spindle Spindle speed 3500r/min 4000r/min
Spindle motor power 5.5KW 7.5KW
spindle nose A2-5
Support hydraulic chuck size 8 inch 10inch
Dimensional &
weight		 Dimensions 2100×1500×1900 mm
Weight 2350KG
