Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
CNC Controller
GSK, Siemens, Fanuc
Machine Bed Type
Slant Bed CNC Lathe Machine
Turret Type
8 Station Electric Tool Turret
Machine Name
Slant Bed CNC Lathe Machine Tools Hydraulic Chuck
Transport Package
Wooden Case with Iron Foot
Specification
2200x1400x1700
Production Capacity
400set/Year
Packaging & Delivery
Package Size
2300.00cm * 2500.00cm * 2300.00cm
Package Gross Weight
4000.000kg
Product Description

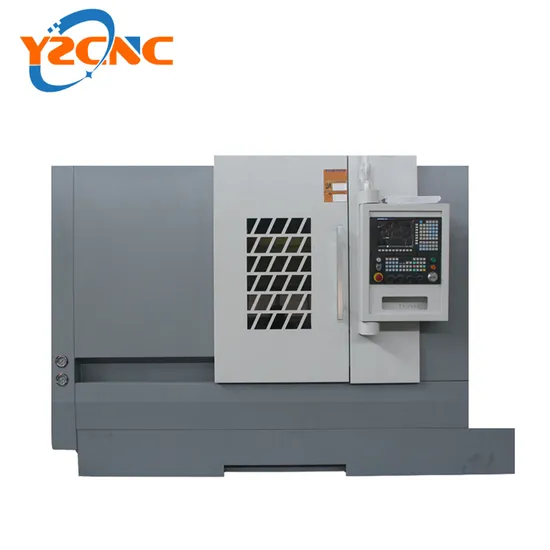

Tck40 CK46P CK46D CK50 Small And Big Metal CNC Turning Center With Milling Automatic Slant Bed CNC Lathe With Power Tool Turret Product Description
| Items | Unit | Parameter |
| Capacity | Max.Swing turning diameter over bed | mm | φ540 |
| Max.Swing over carriage | mm | φ270 |
| Max.processing diameter | mm | φ400 |
| Max.processing length | mm | 550 |
| Spindle | Spindle speed range | r/min | 3000 |
| Spindle bore | mm | Φ65 |
| Bar capacity | mm | Φ48 |
| Spindle motor | kw | 7.5 |
| Travel | X Axis | mm | 540 |
| Z Axis | mm | 1000 |
| Feed | X Axis feed speed | m/min | 20 |
| Z Axis feed speed | m/min | 20 |
| Cutting feeding | mm/min | 1-5000 |
| Tai stock | Tail stock travel | mm | 350 |
| Guide | Gradient | degree | 45 |
| Accuracy | Positioning accuracy | mm | 0.01 |
| Re positioning accuracy | mm | 0.008 |
| | Weight | kg | 3500 |
| Approximate Dimension | mm | 2800x1680x2100 |
Standard Configuration
GSK CNC Controller
8 station hydraulic tool turret
Hydraulic chuck,Hydraulic tail stock
automatic lubrication system,Coolant device, Light
Instruction manual, 380v 50hz 3phases
Optional Configuration
Auto bar feeder.chip conveyor, part catcher
FANUC, SIEMENS CNC Controller
Change machine voltage and turning length Detailed Photos
Company Profile
Company Details
we mainly produce Small And Big Metal CNC Turning Center With Milling Automatic Slant Bed CNC Lathe With Power Tool Turret. CNC Machining center, cnc milling machine, flat bed CNC Lathe, slant bed CNC Lathe, CNC Big bore pipe threading lathe, CNC Wheel repair Lathe
>>
