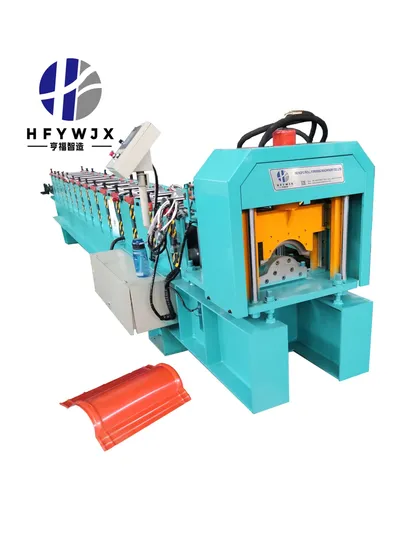

Hengfu Metal Roof Tile Making Machine Ridge Tile Machine Metal Forming Machine

Product Description

Product Description

raw material	Galvanized plate, color steel plate
Feeding width	310mm
Rolling thinckness	0.8mm
production rate	8M/min
Place of Origin	Cangzhou, Hebei Province
Video outgoing-inspection	Provided
Key Selling Points	Easy to operate
machine frame	350H steel frame
Warranty	1 year
Dimension(L*W*H)	about 6000mmx1300mmx1400mm

cut off	After forming, it is cut off and the four-column tie rod guide column is sheared (no burrs in shearing, and the maintenance rate is extremely low)
Usage	Building
Machinery Test Report	Provided
Electronic control system	Industrial computer PLC frequency conversion control, cutting length error ≤1mm
Roll material	Rough turning and fine turning of No. 45 steel, cylindrical grinding (the ribs are made of bearing steel)
Spindle diameter	Φ70mm(solid shaft)

Detailed Photos
Company Profile
Certifications
Packaging & Shipping
FAQ
Q:Are you a manufacturer?
A:Yes absolutely. Welcome a lot for your visiting to us.
Q:Do you have after-sale support?
A:Yes, we're always here for giving you advice and support for technical details since we have senior technician.
Q:Is there quality control when manufacturing the lines?
A:Yes, we have a group of team who will be responsible for quality control from laying off the raw material, processing the rollers and the other parts, make treatment on the roller surface and shaft, assembling, testing and packaging.
Q:What's your strength comparing to the other supplier?
A:We'll supplying you the best quality and service. We'll give you good advise beyond your requirements. The lines are easily for installation and with low mantenance requirements.
Q:- Any other service?
A: We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange
accommodation during that time.

---
